Longines 14K Gold Women’s Watch

Restoration of a vintage cocktail watch

Taking a break from chronograph repairs I moved on to a watch that was just as challenging it its own way. Here I have a Longines women’s watch probably from the 1960’s in a 14k gold case with diamond accents. When I purchased this piece the watch had a damaged dial with a missing crystal and was more or less non-functional.

IMG_0310

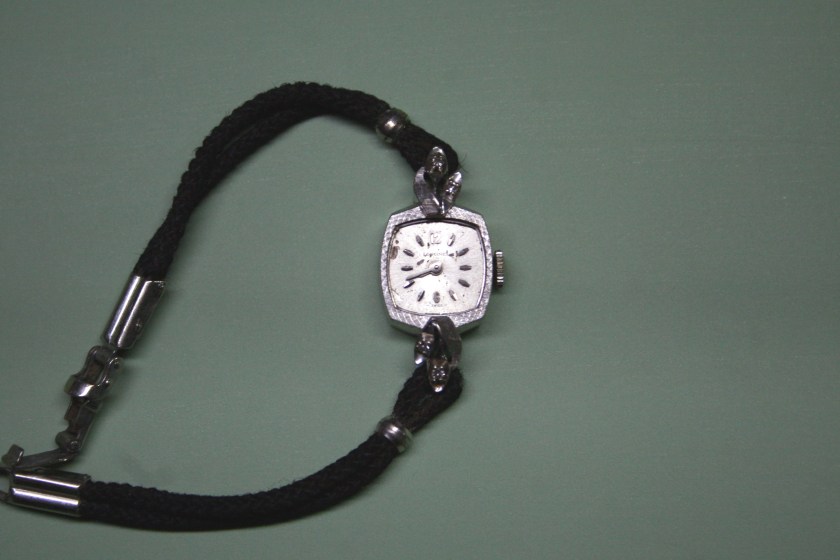

This was once a beautiful watch…

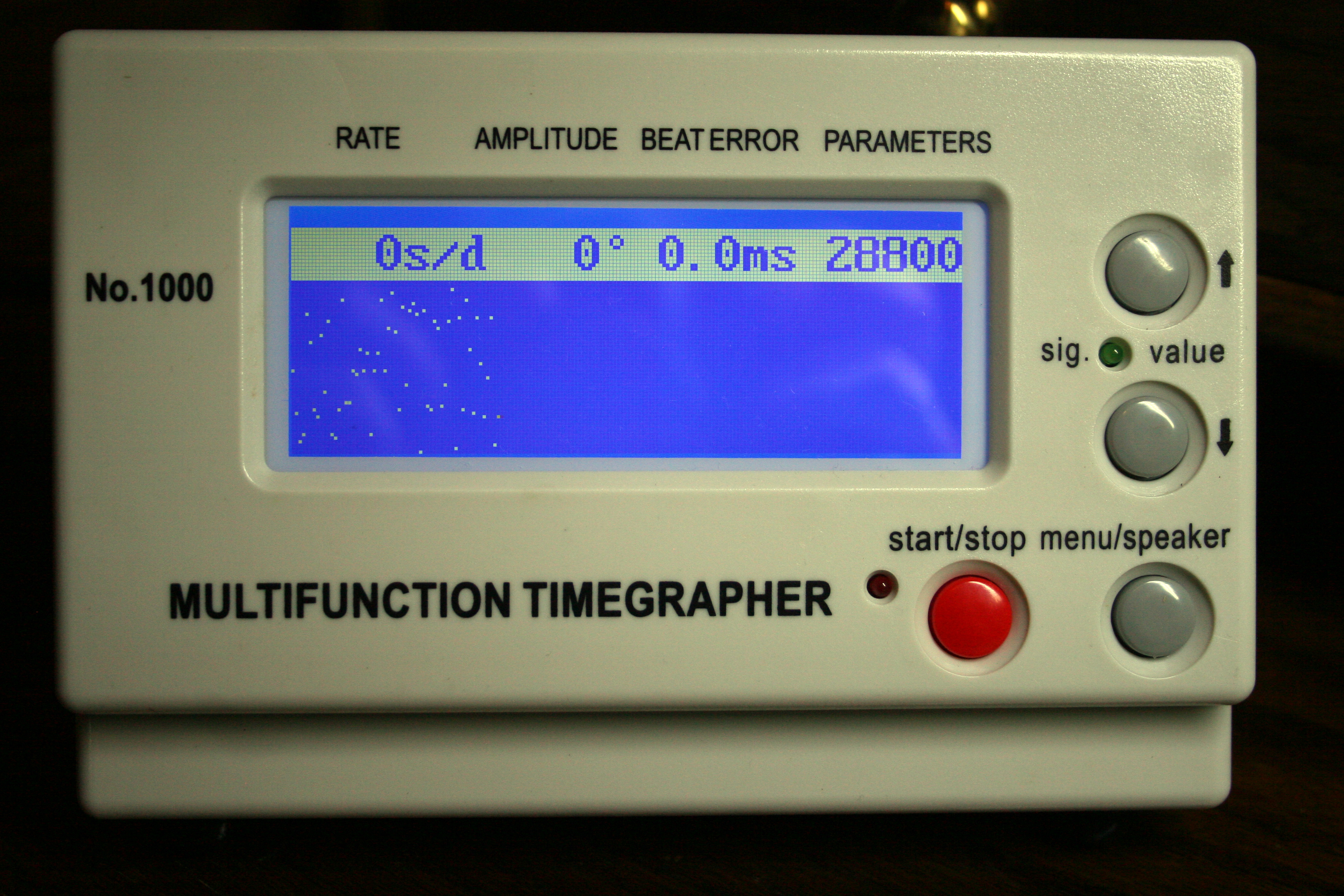

I managed to coax a few ticks from its heart but when placed on the timegrapher the readout may as well have been a flatline- no amplitude, immeasurable beat error, and no time keeping ability.

IMG_0307
This counts as “no reading”

Filled with confidence (but not yet backed with a proven skill set) I powered forward and de-cased the movement. Women’s watches of the period are assembled a bit differently from the men’s in that the movement is snugly secured in the caseback which is then snapped into the case; there are no case screws to lose during this repair.

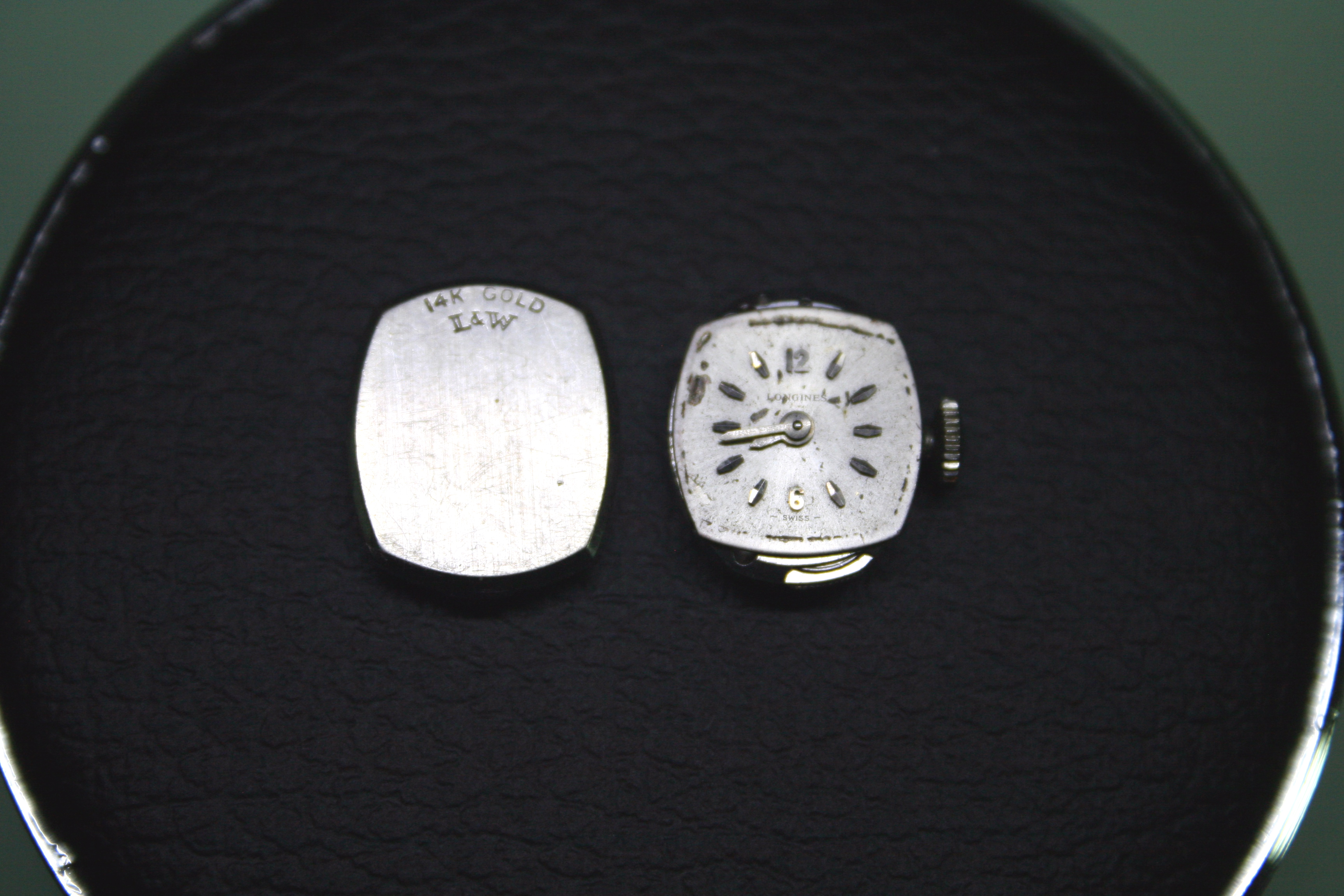

IMG_0312
Solid 14k white gold case though

Once removed, the full extent of the damage to the dial became apparent. A refinishing would certainly be necessary.

The movement was in fine shape although quite dirty. A bit of moisture had entered the movement via the stem tube resulting in some rust but otherwise the movement looked quite good.

IMG_0316
The movement looks pretty good
IMG_0317
There’s a bit of rust on the keyless works though

Having never worked on this movement before I documented each step during disassembly to ensure the best results during reassembly.

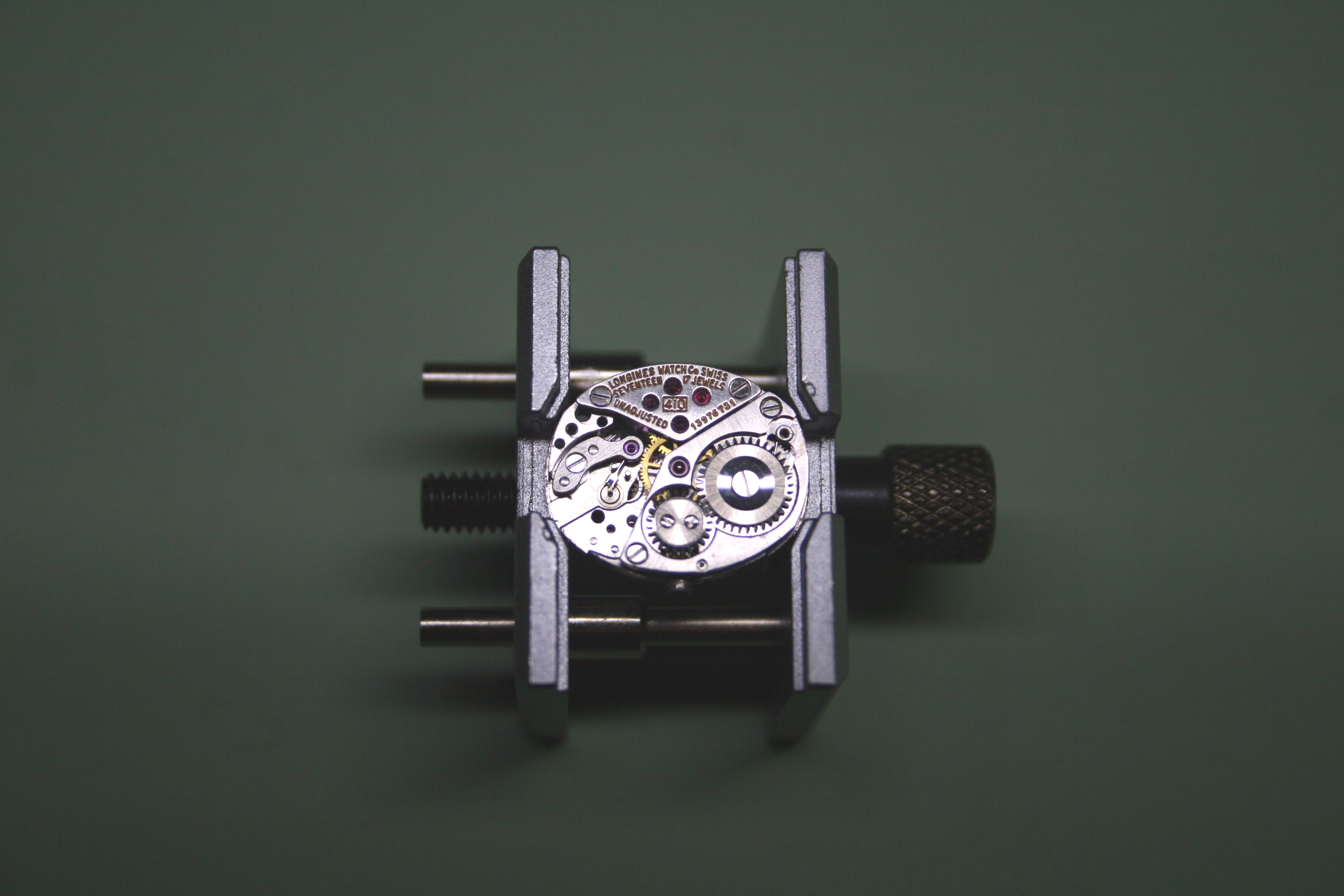

IMG_0319
The balance comes out first
IMG_0321

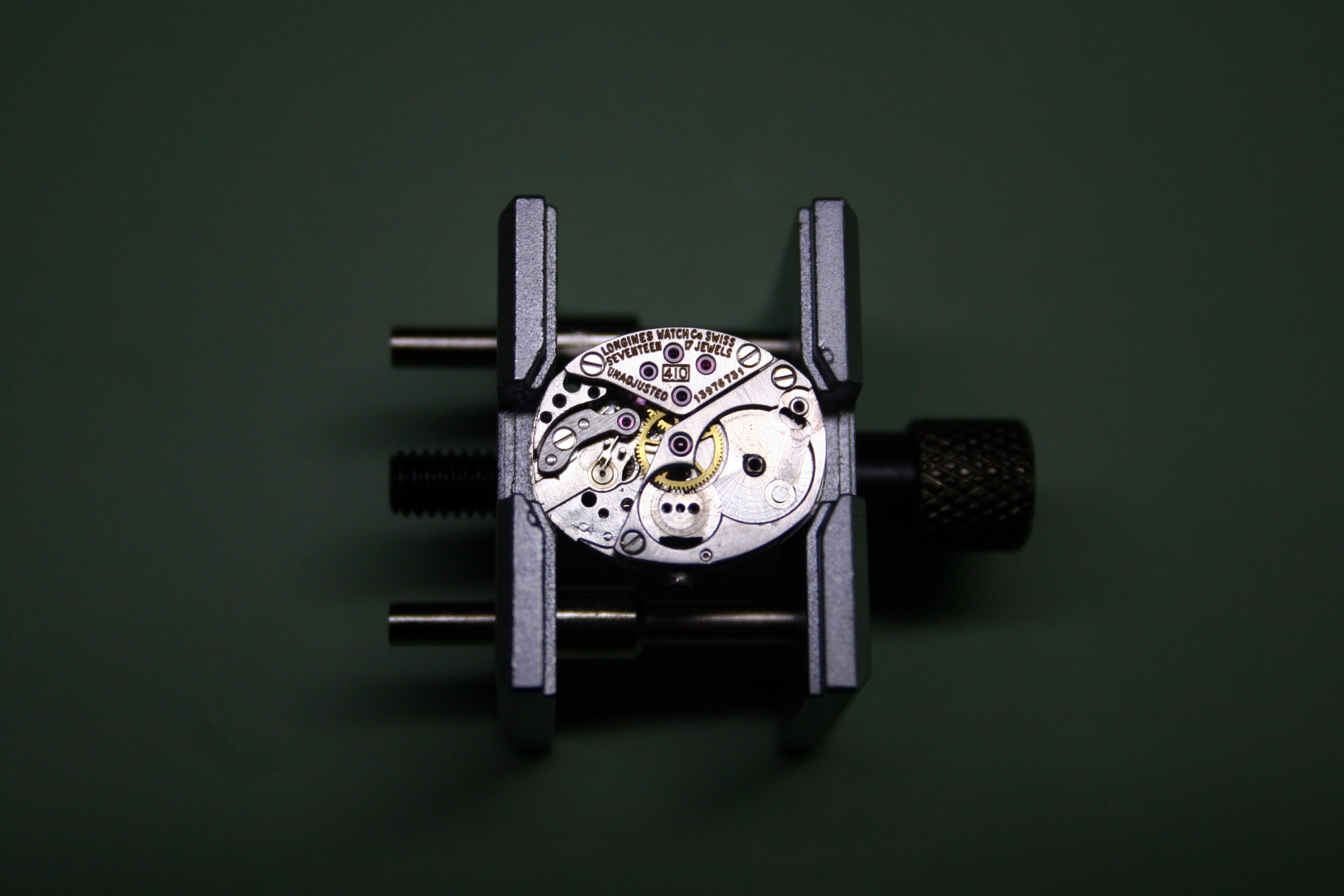

Next the crown and ratchet wheels

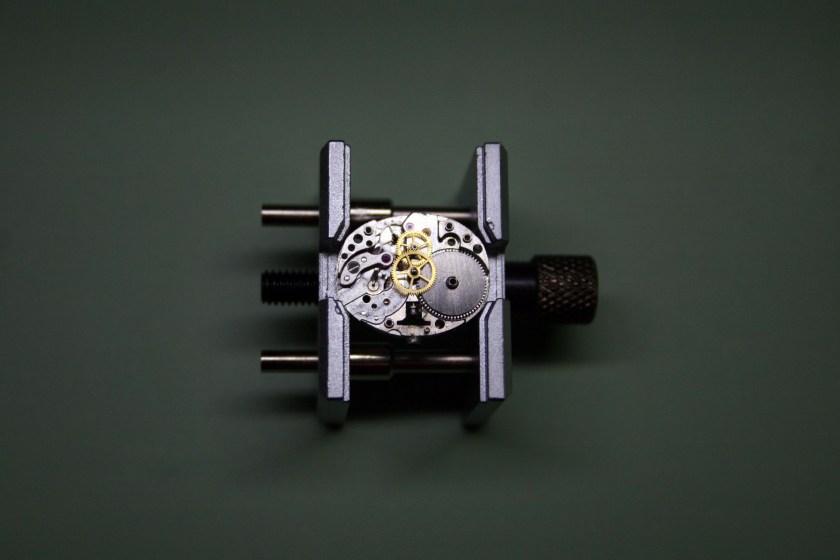

IMG_0323
Bridge removed to expose the gear train
IMG_0324
Just the escape wheel and pallet fork are left

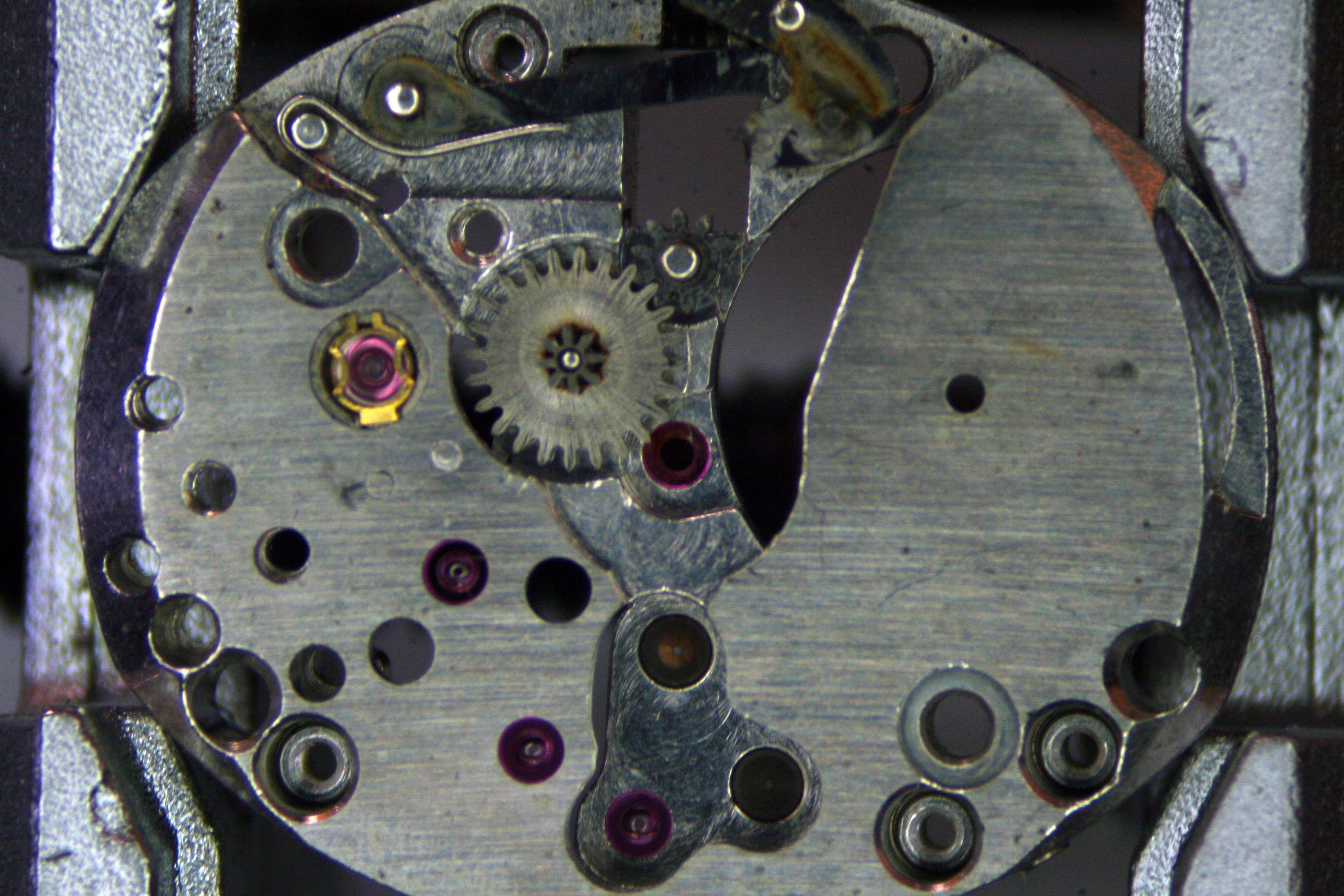

IMG_0328
Clearly a bit of water damage here

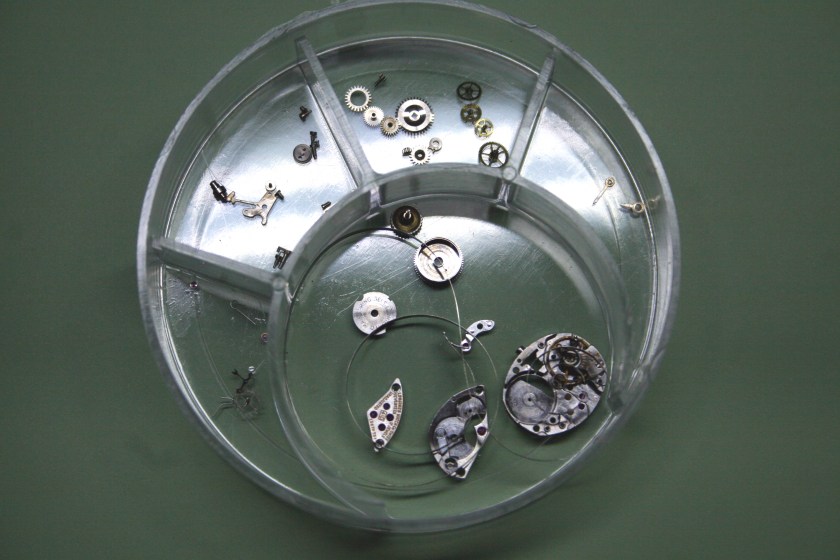

IMG_0338
Broken down and ready for cleaning

Once fully disassembled the main components went through the L&R cleaning machine while the balance and cap jewels were cleaned in white spirits. Unfortunately for me, the cap jewels have no tint to them (they are clear) and when immersed in clear liquid they simply disappear before your eyes. I managed to recover the bottom balance cap jewel but was not so lucky regarding the top jewel.

I thought this might be a blessing in disguise when I realized how cheaply a replacement 410 movement could be obtained via eBay and most came with the original dials still attached. I hastily purchased a replacement which would not only supply the missing cap jewel but also the proper Longines crown and a dial in good condition.

Alas, when the package arrived I discovered quickly that the replacement dial was slightly large and wouldn’t fit in the case.

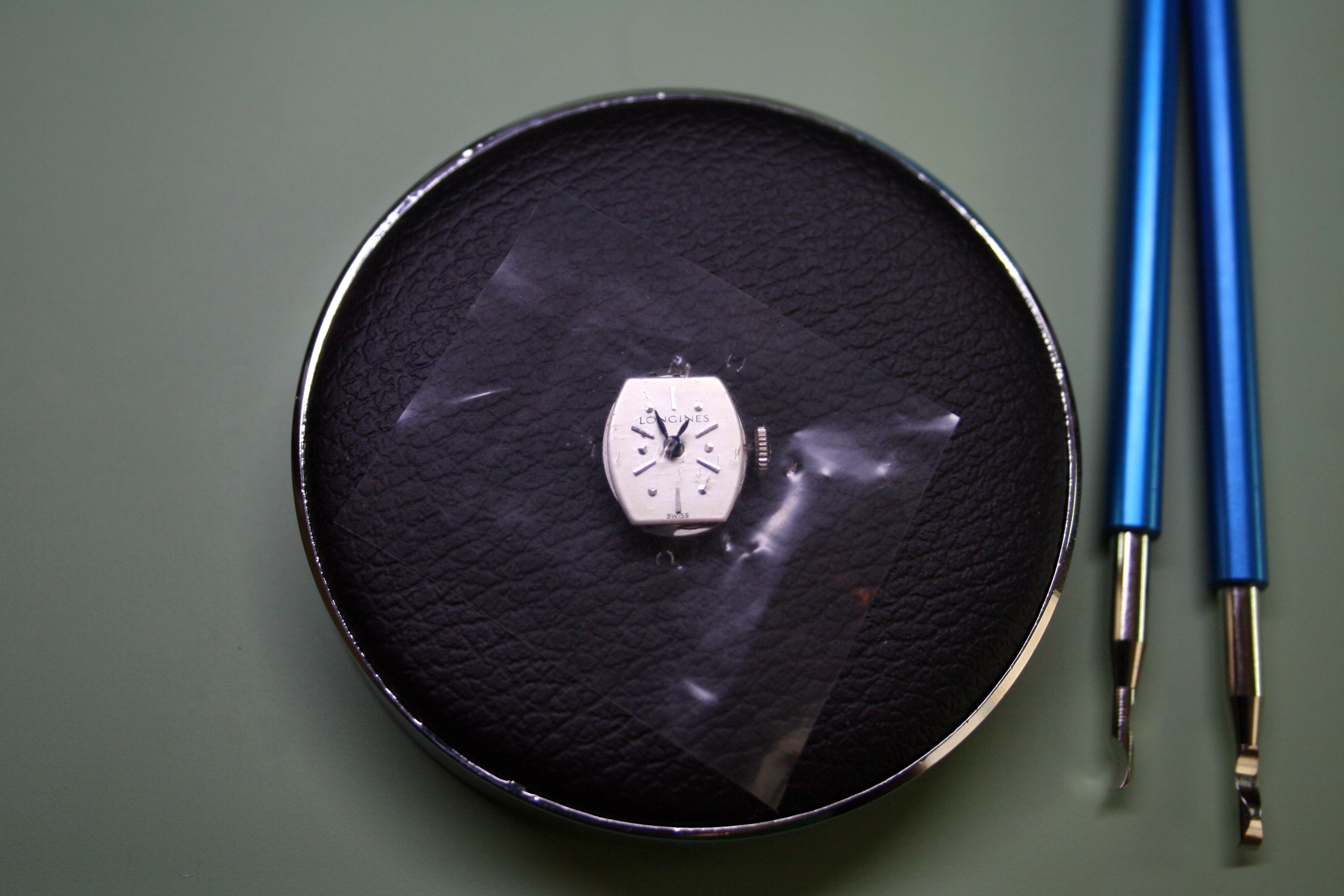

IMG_0413
Replacement parts movement being broken down

I set about removing and cleaning the needed cap jewel.

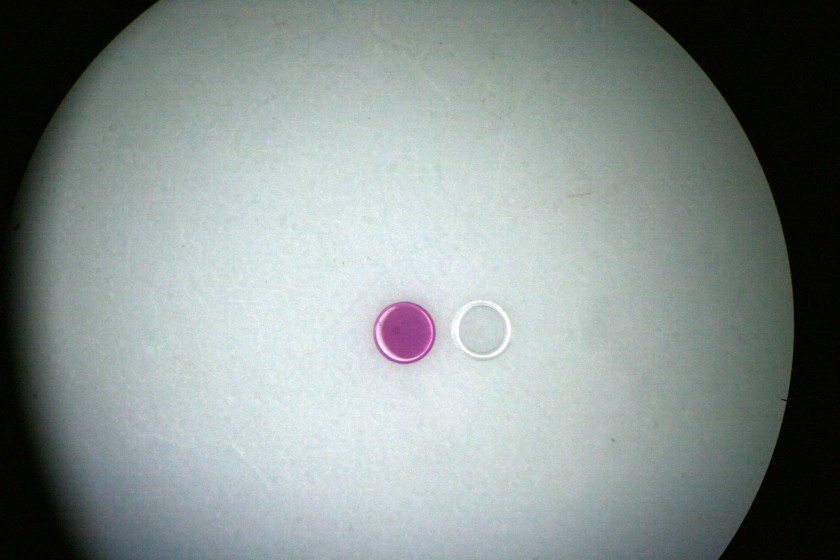

IMG_0418
Replacement pink cap jewel on the left, original clear cap jewel on the right

Then treated it along with the pallet and escape wheel with Fix-o-Drop before placing them back in the watch movement.

IMG_0414

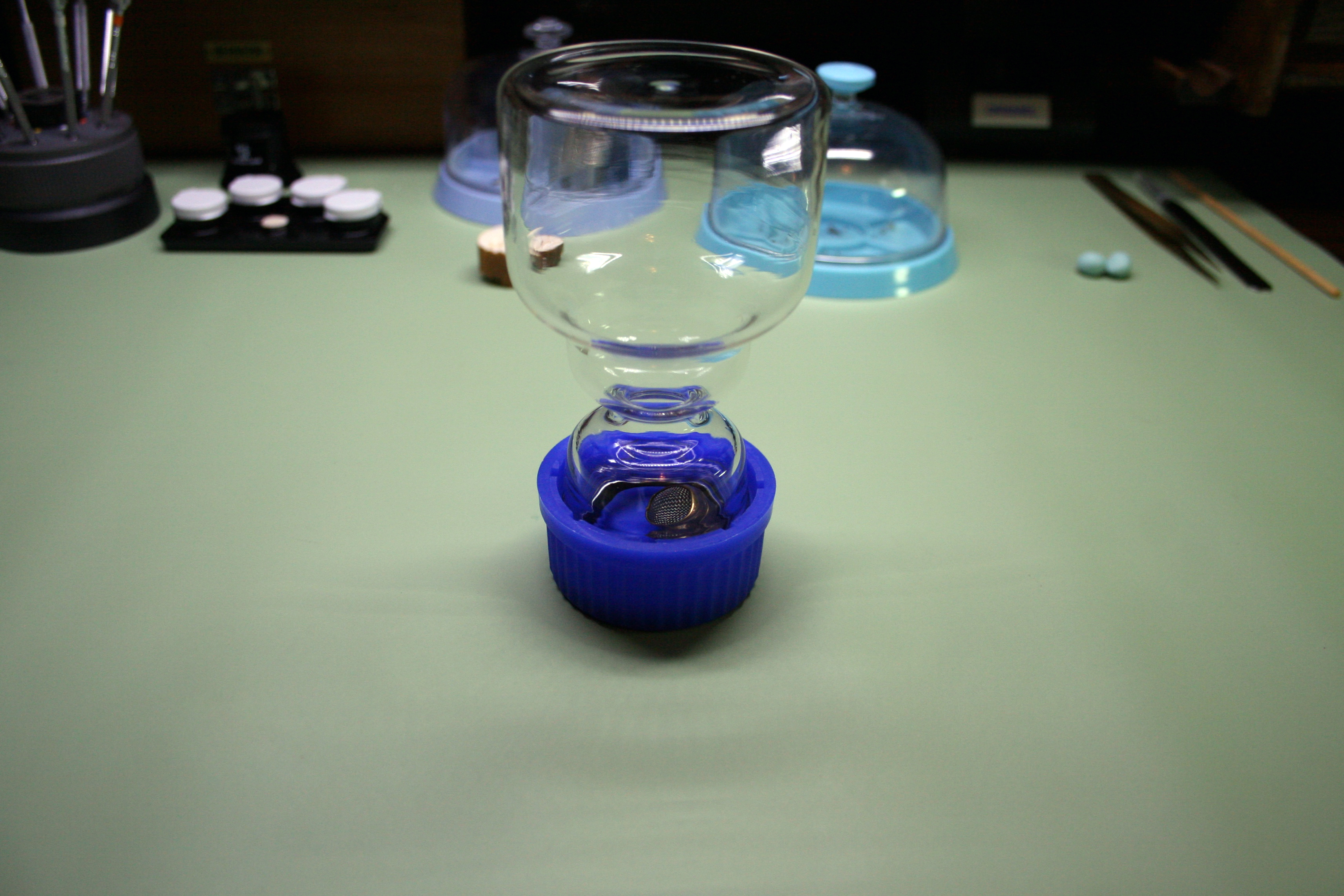

Epilame treatment for the pallet, escape wheel, and balance jewels

I decided to use the mainspring barrel from the replacement movement as well since the wording on the original barrel was lost during the cleaning process.

IMG_0591

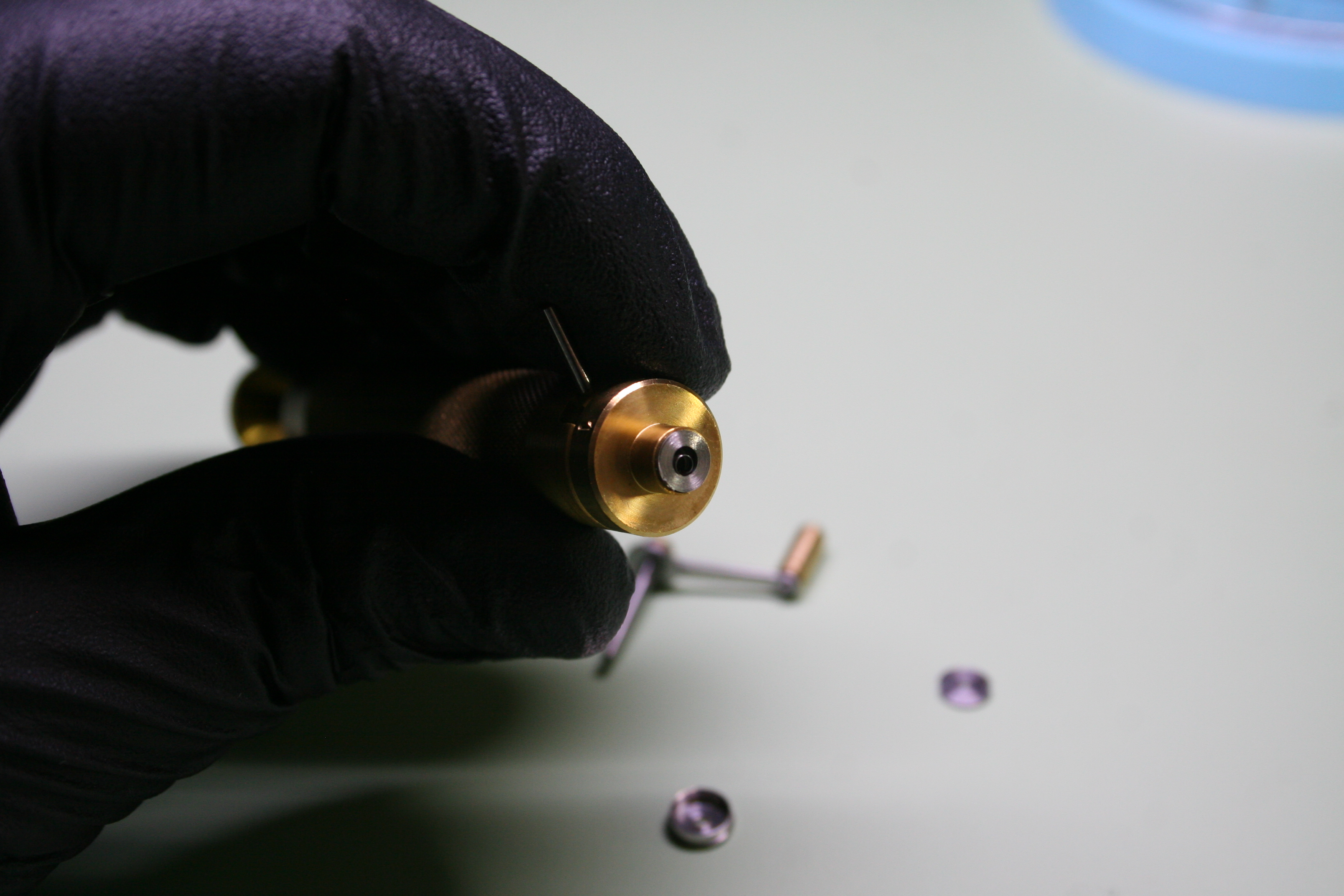

The replacement mainspring is wound and ready
IMG_0592
Mainspring in the replacement barrel

I retraced my steps during assembly and was ready to test the watch in short order. From there things didn’t go smoothly though. The timegrapher reported an exceptional beat error and very poor amplitude so I removed the balance wheel to examine the hair spring and balance staff for defects.

IMG_0416

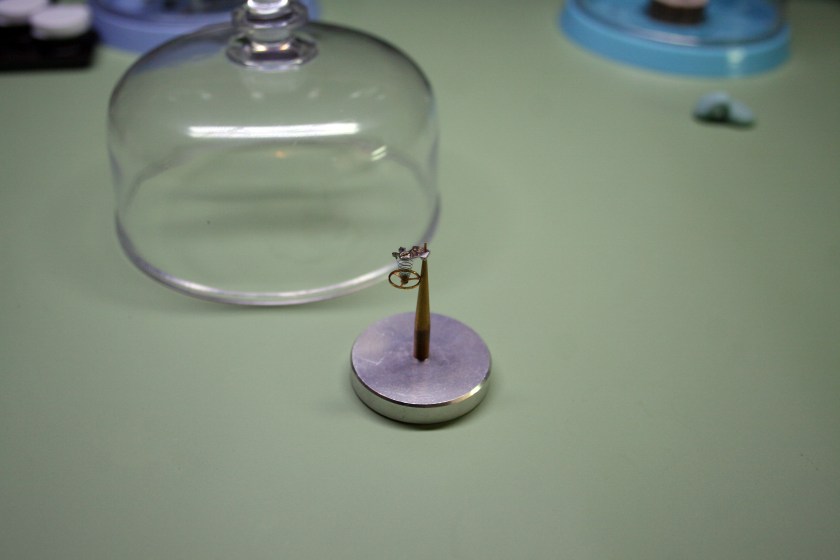

Balance removed for inspection- it’s even smaller than you think!

With none observable I returned the balance to the movement and double-checked the amount of play in the gear train. No obvious problems came to light until I finally opted to remove balance from the cock for inspection. A tap from my tweezers against the hairspring finally revealed the source of the problem.

IMG_0848

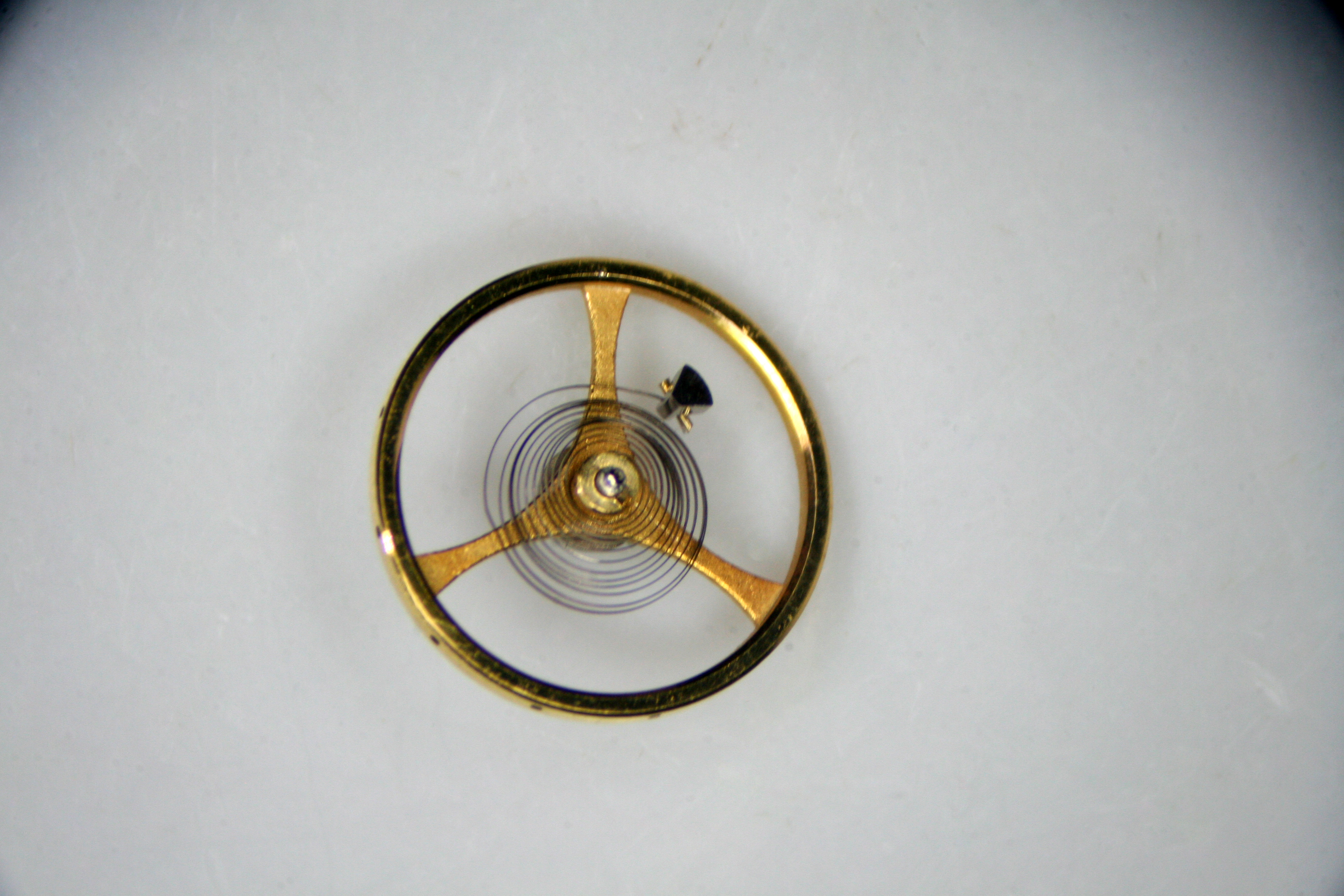

Sticky hairspring coils- unseen by the naked eye when the balance was in action

For some reason the coils seemed to be attracted to each other despite repeated cleanings and a run through the demagnetizer. I finally threw in the towel and replaced the complete balance with the one from the parts movement.

IMG_0844
Reassembled and ready for casing
IMG_0843
Dial side- note the replacement dial washer
IMG_0841
It took quite a while to get to this result!

With the movement beating properly I reinstalled the dial which had been refinished by International Dial. I must admit a bit of disappointment regarding the refinishing of the dial but honestly I’m not sure a better job is possible. The text is beyond tiny and for all I know, restoring the maker’s mark needed to be done by hand. Dial condition is certainly something I will consider when making my next vintage purchase though.

IMG_0846

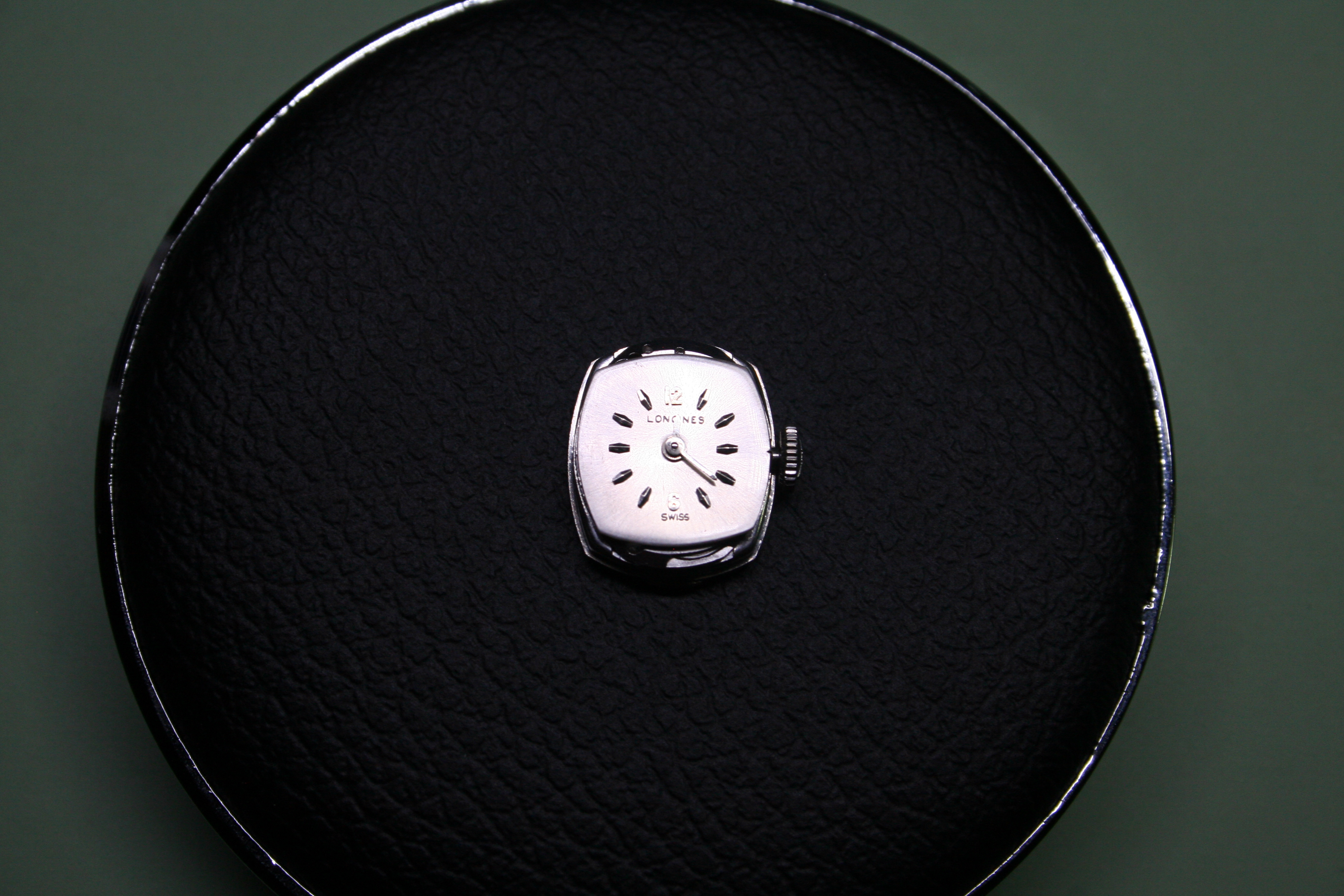

I’m nitpicking the dial restoration

Next I installed the replacement crystal. This was a heck of a job because I was unable to procure the proper crystal for the case and had to instead file, sand, and polish to fit the best available alternative. Lot’s of elbow grease involved in that job!

IMG_0849
The crystal was a tight fit but I felt adding cement was prudent

Since it’s a mineral glass crystal, I secured it in place with some UV curing cement. This may not have been necessary in the end since the fit was nice and snug but it’s good for my peace of mind.

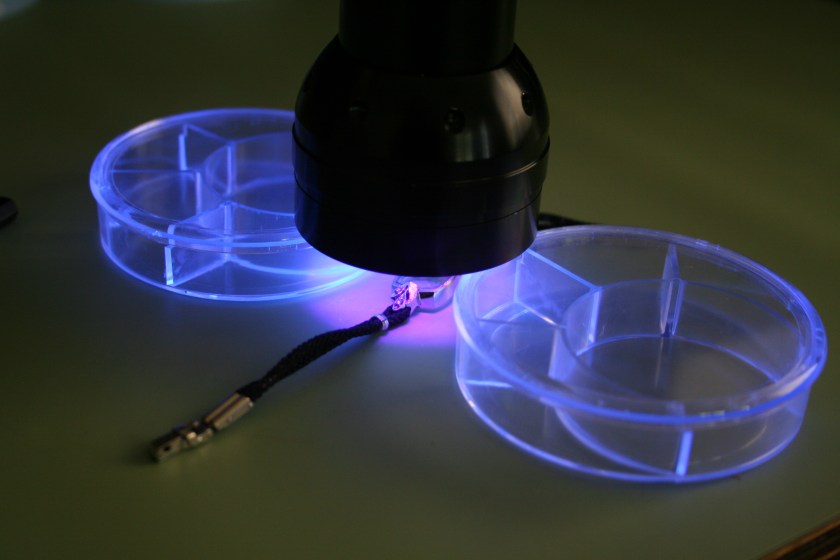

IMG_0850
Curing the cement with a UV flashlight

Lastly the case was given a bit of polish with some Dialux compound. The end product speaks for itself.

IMG_0851
My wife is the hand model here
IMG_0877
I’m happy with this
