Tissot 14k Gold Women’s Watch

Restoration of vintage women’s watch

I picked up this neat little cocktail watch several months back on account of it being solid 14k gold with diamond accents.

img_0284

Knowing there isn’t much of a market for vintage women’s watches (especially of the mechanical type) but wanting to challenge myself with a small movement, I thought it would be a fun project and that I might just inherit a new skill to add to the arsenal.

I found the watch to be ticking but unable to keep time as you can see from the timegrapher readout below.

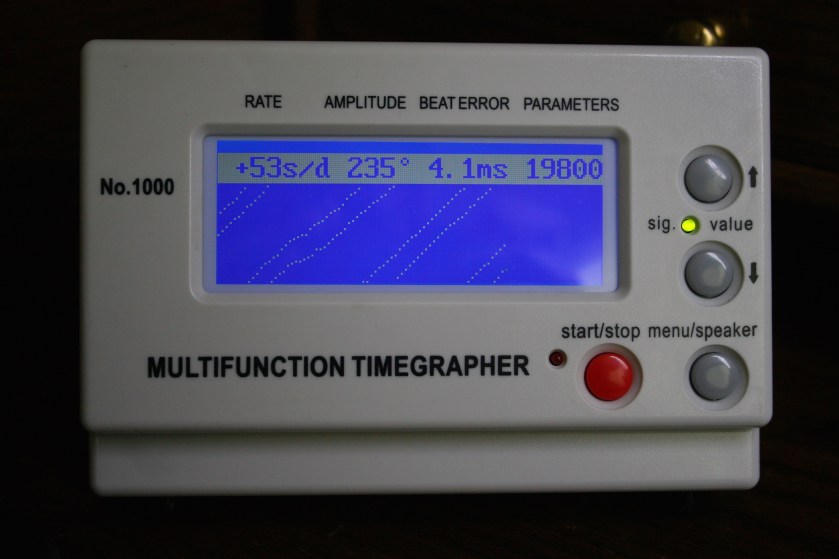

img_0289
Vitals are good

I haven’t really explained how the timegrapher works in the past so I’ll give it a go now.  Horizontally running across the top above the LCD window you see the headings Rate, Amplitude, Beat Error, and Parameters. Within the window, immediately below these headings is the data for the movement being tested. The timegrapher uses a sensitive microphone to listen to the ticking of the movement then translates this sound to the data above.

For this movement you can see that it is running 53 seconds per day fast. The amplitude is 235 degrees, which is not bad. The beat error is high at 4.1 milliseconds. and the watch is beating at 19800 beats per hour (to be unscientific- 9,900 “ticks” and 9,900 “tocks” per hour).

Below the numerical data is a visual representation of the ticking movement. The dotted lines represent the “ticks” and “tocks” as heard by the microphone. You can see the watch is gaining time as the lines are climbing from left to right. The space between the two lines is a visual representation of the beat error. This is a little more difficult to explain so I’ve linked a YouTube video that does better job of explaining the phenomena. Essentially we’d like the beat error to be as close to zero as possible.

Heartened by the reading on the timegrapher I broke down the movement for a complete cleaning.

As I expected the dial could use a refinishing but the movement itself was in fine shape.

img_0285

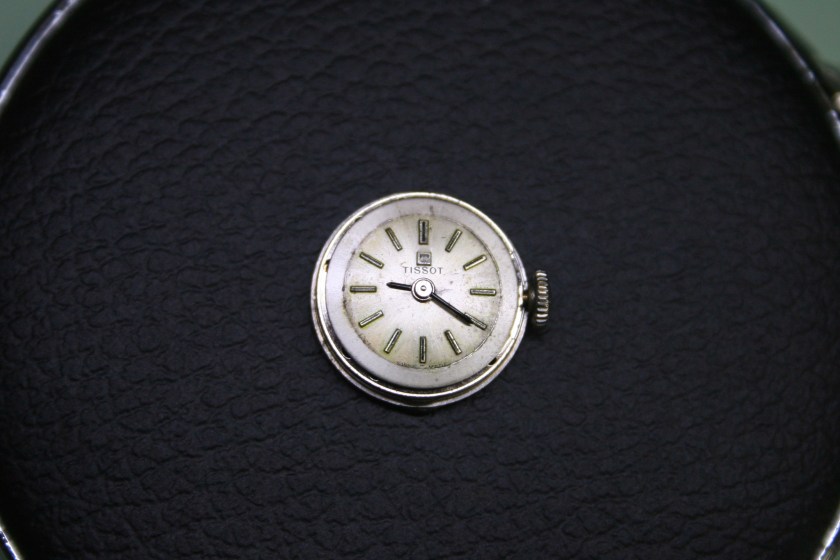

The finish on the dial is a bit weathered

A little bit of rust was found around the keyless works which is typical of most watch movements as the plates are plated brass but the screws, pinions, levers and springs are usually carbon steel. When moisture enters the watch it’s usually through tube for the winding staff.

img_0291

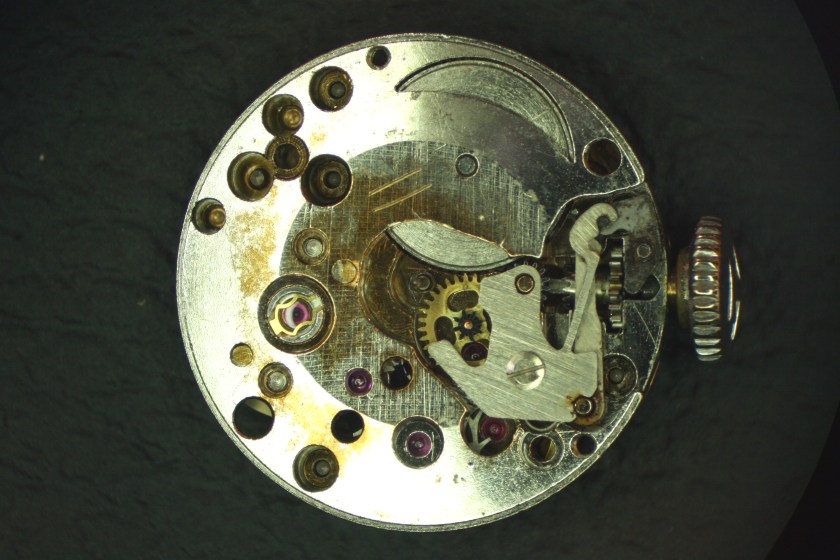

Dial side under the microscope

Breaking down the movement was a slow process which I documented meticulously;  I did not have a service sheet for the Tissot 709 movement and I knew I would need to refer to the images during reassembly.

img_0295

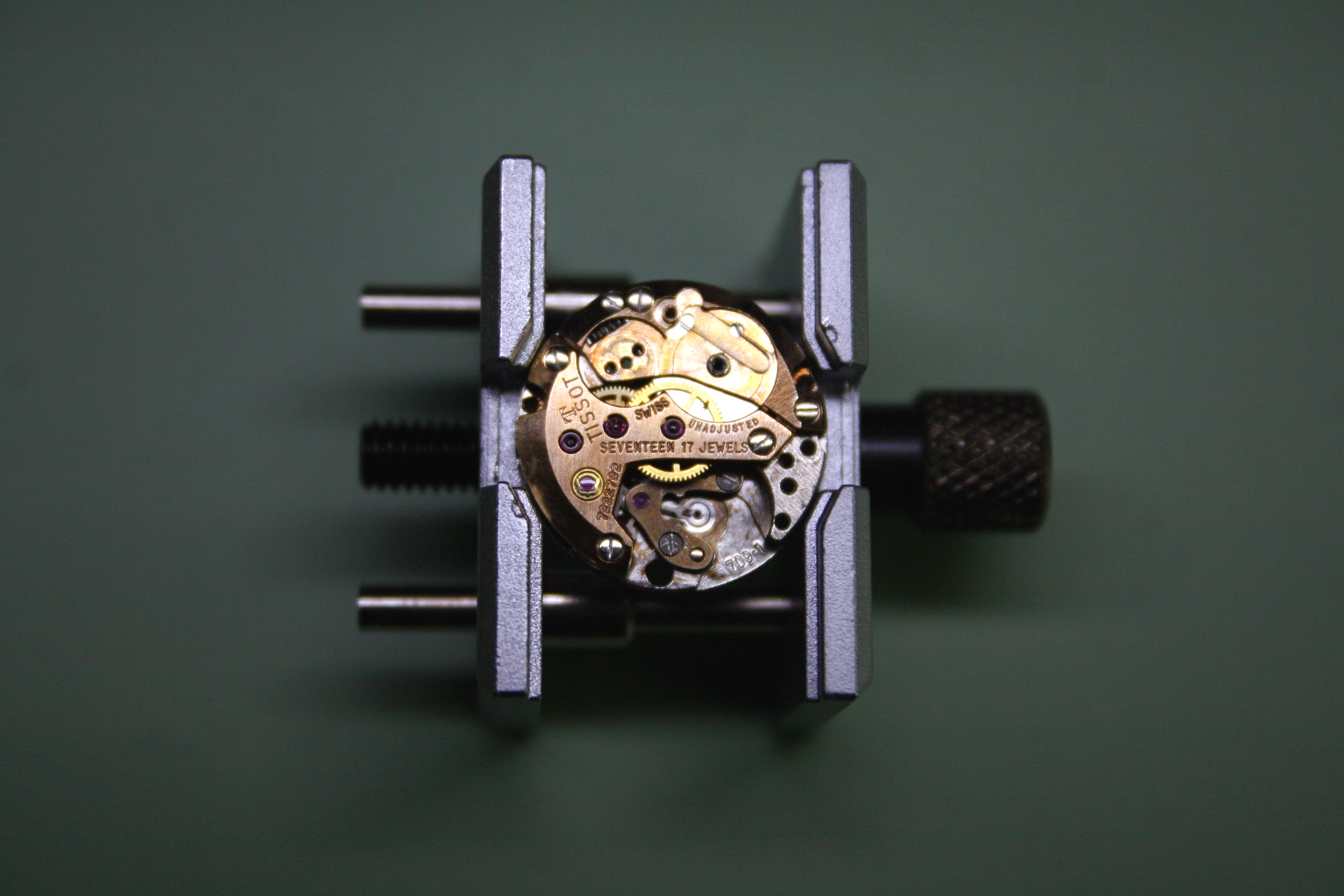

I like the copper plating on the movement. Note the cap jewel for the escape wheel
img_0297
Here’s a very small gear train

Since this is neither a chronograph nor an automatic movement there were much fewer pieces to keep track of, but being that this is a women’s watch the parts are much smaller! I found assembly to be much more challenging than usual- especially when it came to setting screws.

img_0373
The mainspring occupies about two thirds the space that I’m used to
img_0375

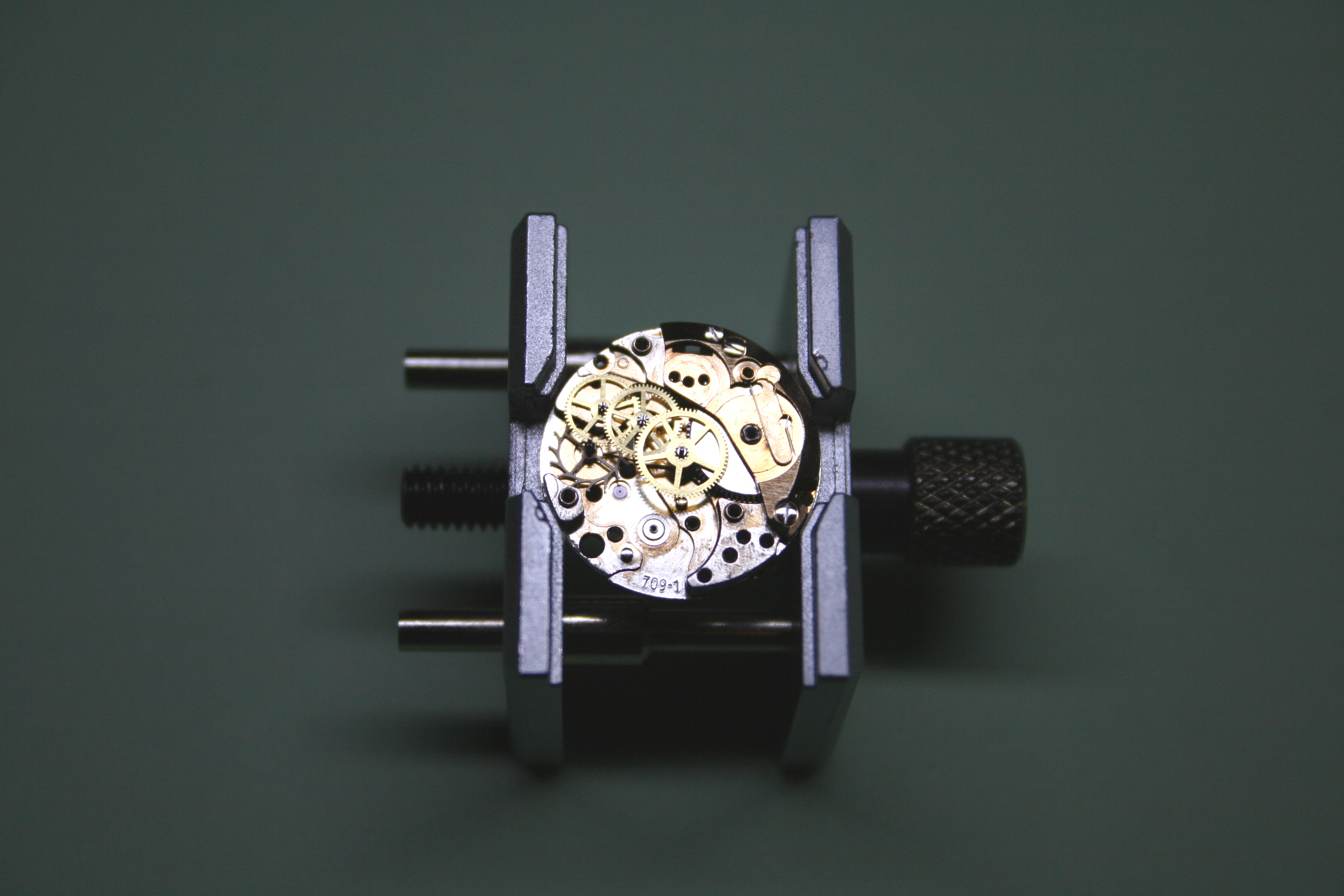

The gear train comes back together after cleaning
img_0385

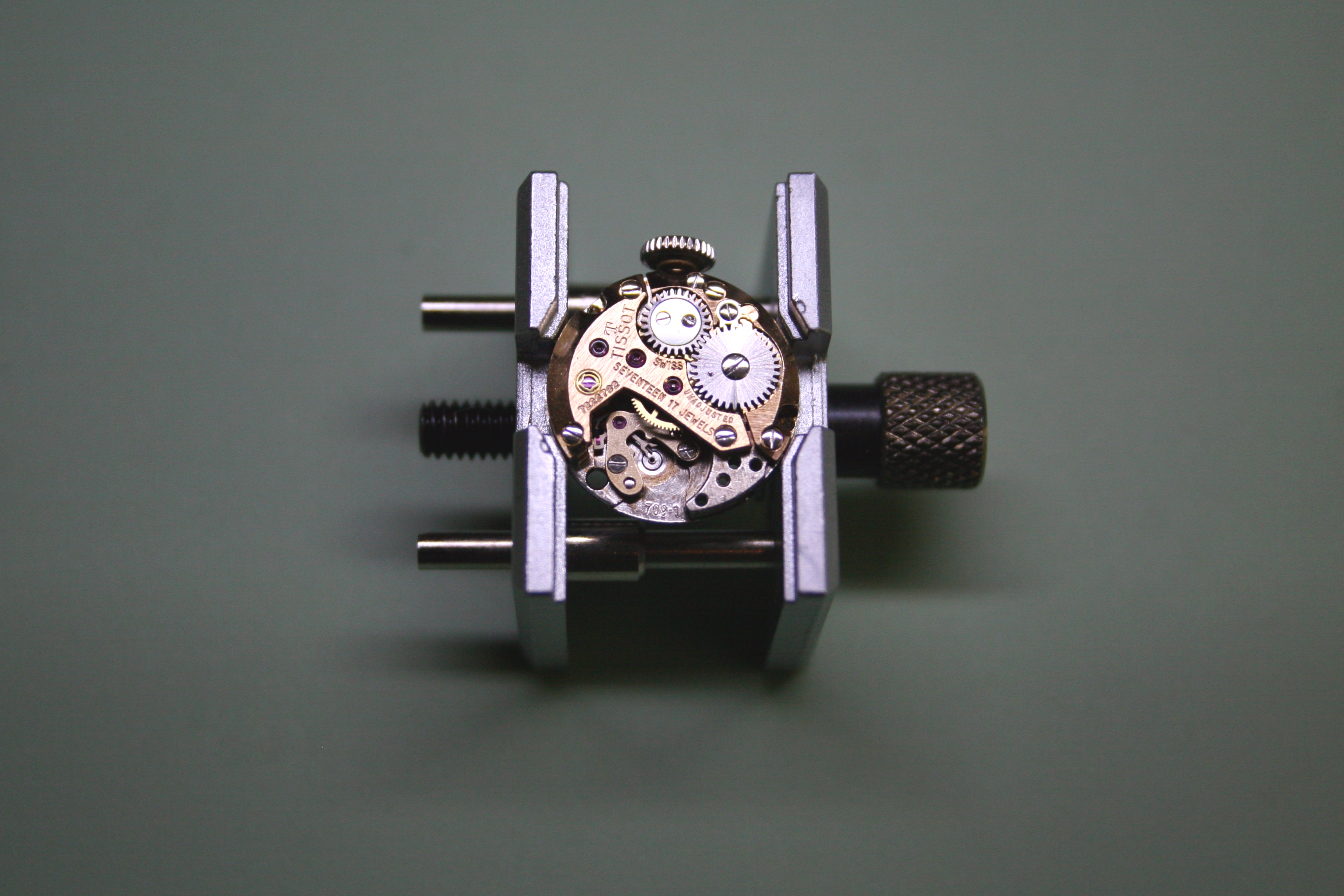

All together now except for the balance and balance cock

Things went pear shaped when I reset the balance. Forgetting that this watch had a beat corrector, I set the balance to determine the alignment of the roller jewel before again removing the balance cock to adjust the collet. Unfortunately I was a little to quick with my movement and didn’t see that the balance wheel was hung up on the center wheel.  This resulted in the stretching of the hairspring.

This was a rookie error that will not be repeated. I’m afraid there’s no amount of effort that will set the hairspring right again.

img_0388

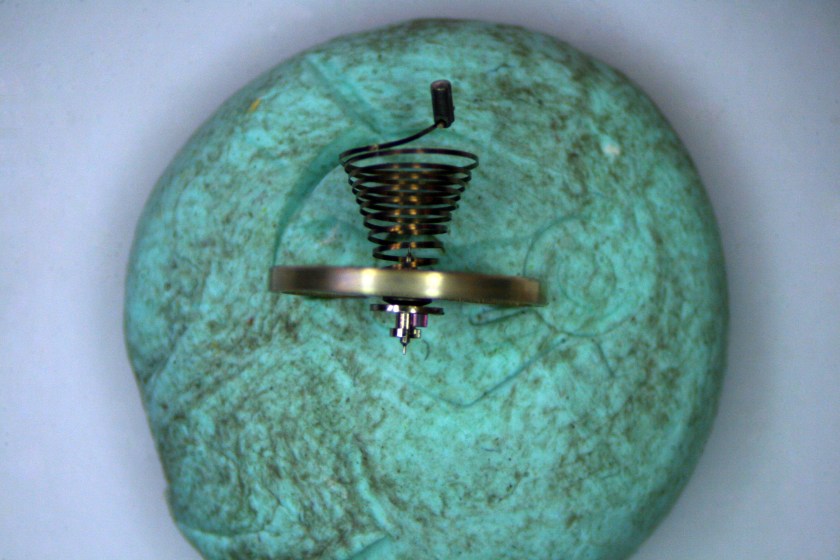

The hairspring should be flat- not shaped like a tornado

Fortunately a replacement balance could be found in a used movement on eBay and as a bonus the movement came with a usable dial. In lieu of swapping out the balance, I cleaned the replacement movement and used it instead.

img_0969
Replacement movement arrives with a better dial

The replacement movement is slightly different from the original. The original movement was a Tissot 709 while the replacement is a Tissot 709-2. The 709-2 movement does not have a cap jewel on the escape wheel but rather a jewel has replaced the bushing on the dial side for the center wheel.

img_0972
Appears quite clean under the microscope
img_0976

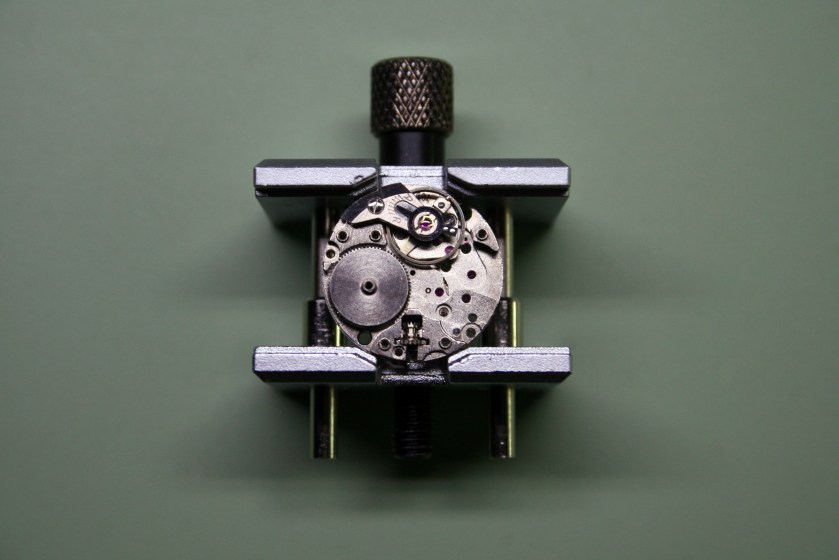

Stripped down to the mainspring barrel and balance
img_0978

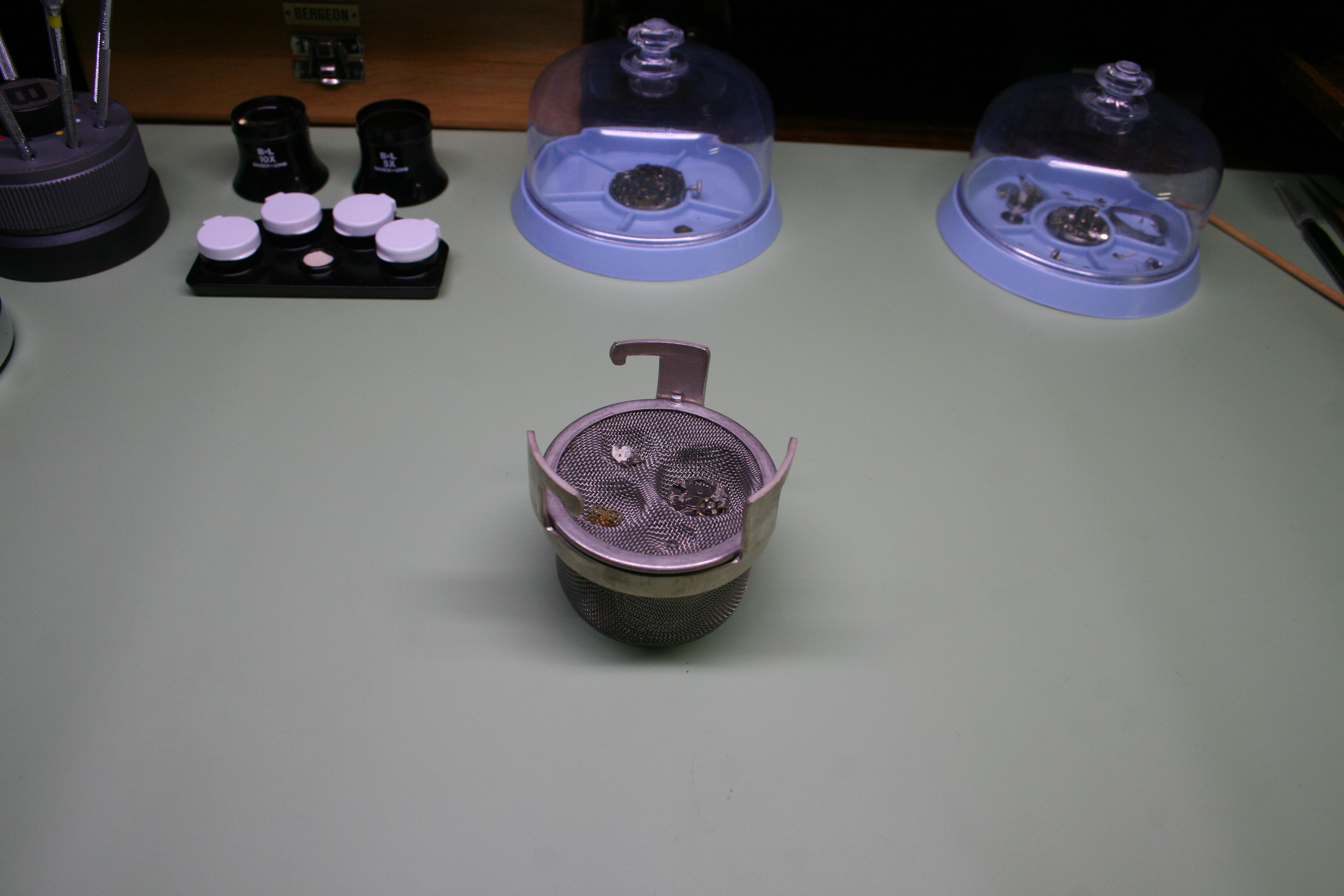

Bits and pieces go into the basket for immersion cleaning
img_0982
Cleaned, dried, and ready for reassembly
img_0984
Mainspring is rewound
img_0986

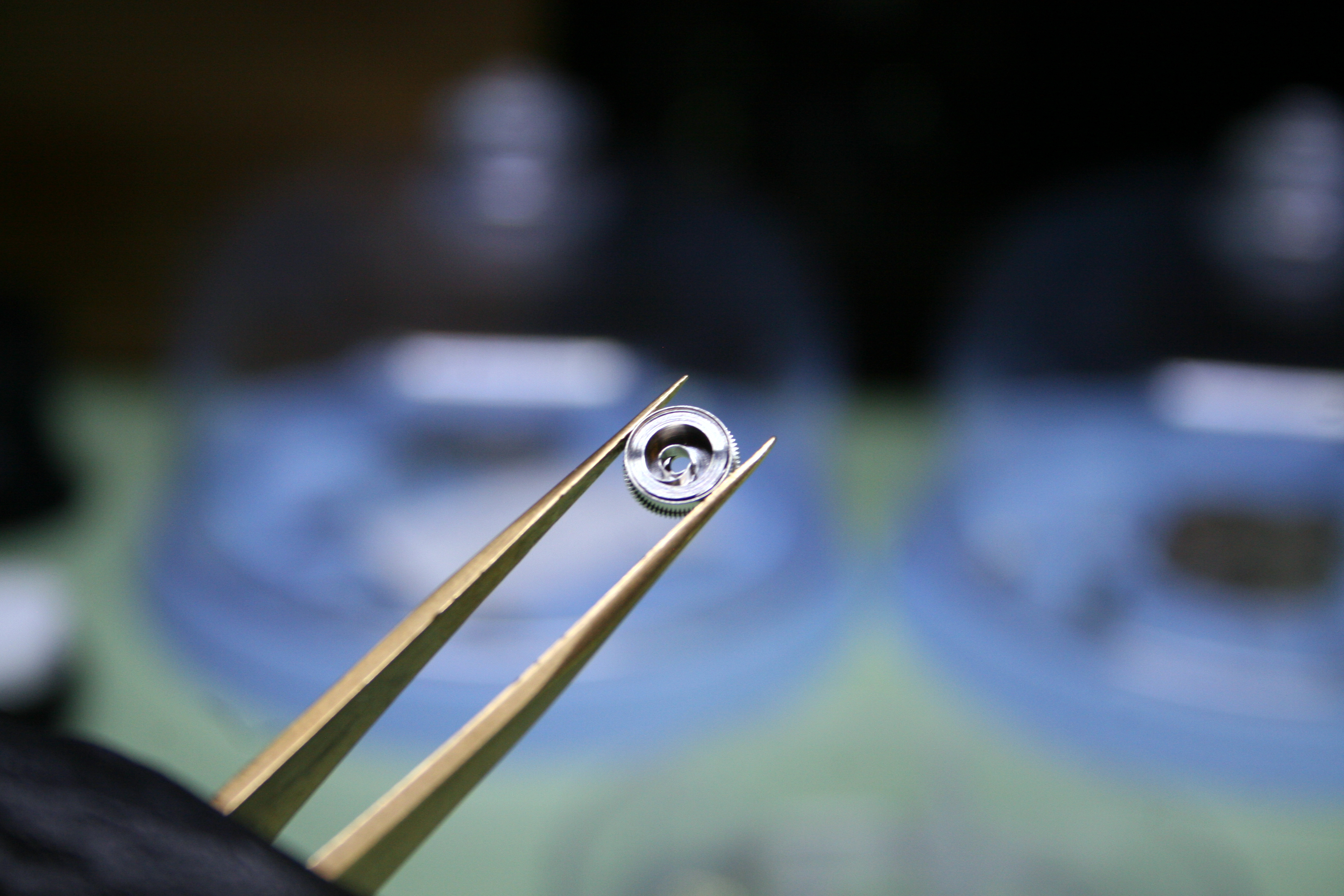

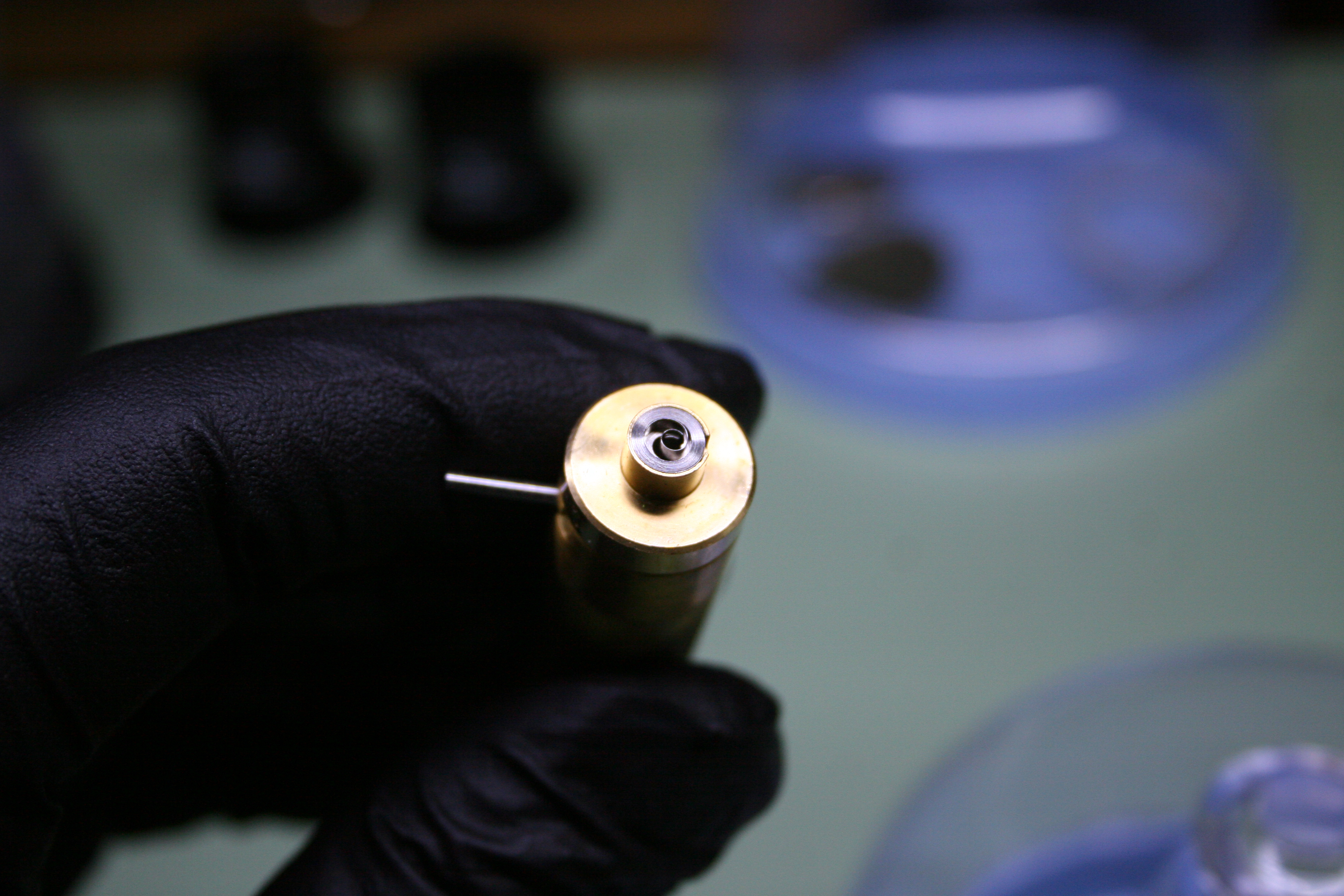

Mainspring back in the barrel- this is pretty tiny stuff
img_0987

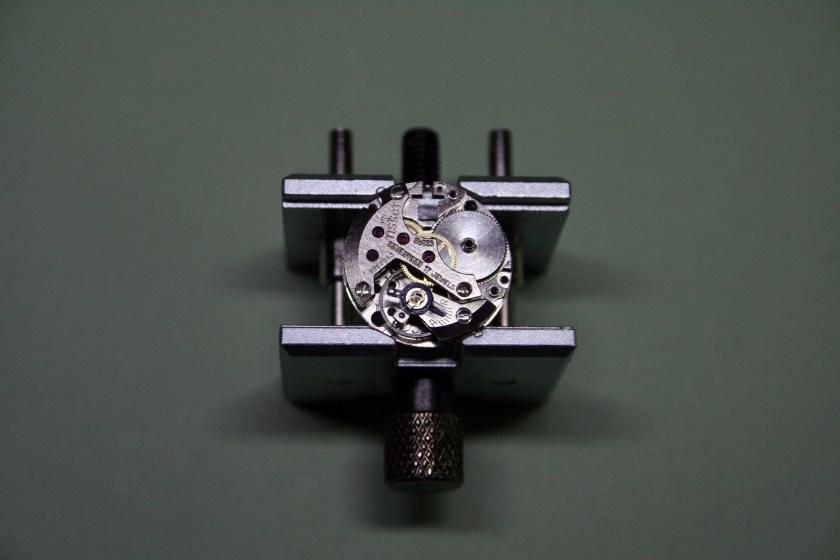

Reassembly almost complete
img_0991
Dial side is quite clean- this movement looks just about new
img_1388

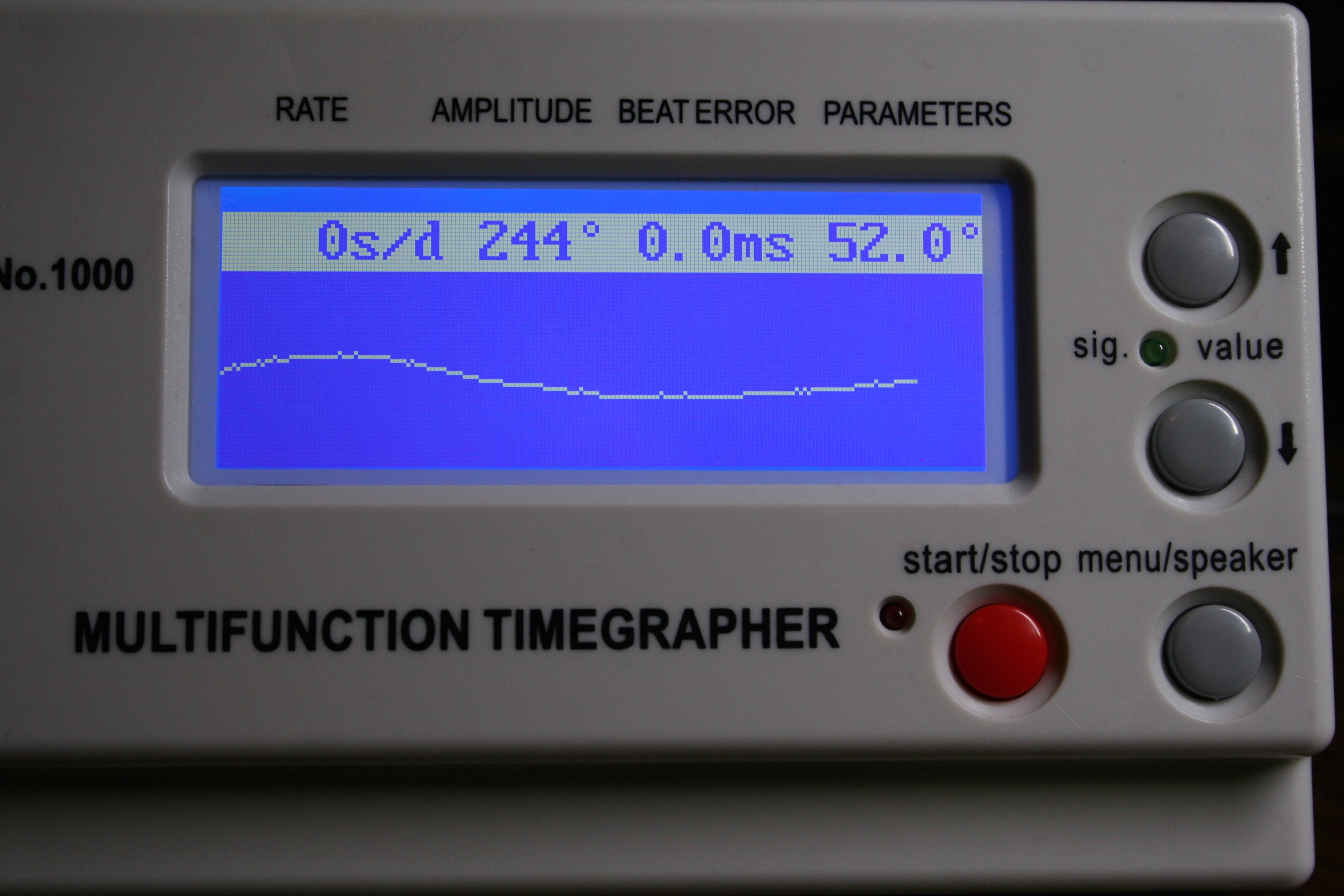

It’s a good reading

I cleaned the case and bracelet in the ultrasonic cleaner and replaced the scratched acrylic crystal to finish the project.

img_1392

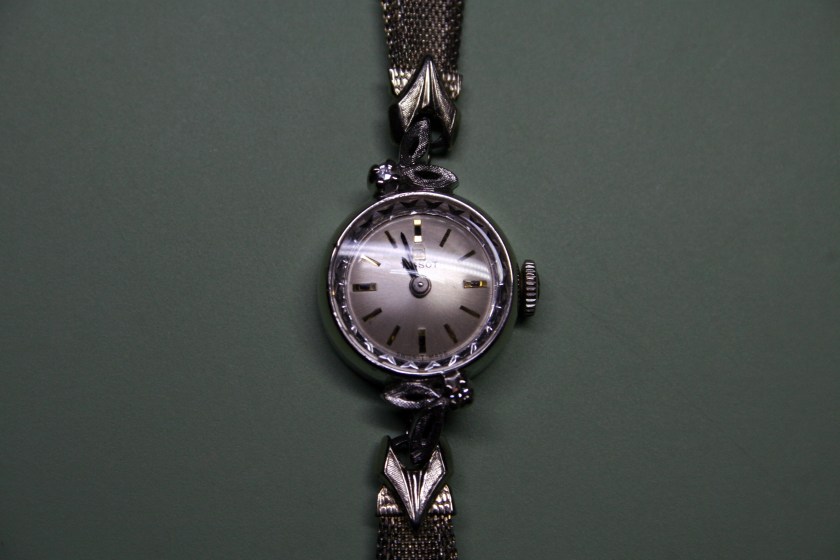

Well done!

In the end this watch looked as just as good as I had hoped it would. It was a learning experience for sure and I wish I hadn’t ruined that hairspring but in this case I think all is well that ends well.
