Gallet Multichron 12

Service of an Excelsior Park chronograph movement

Slowly but surely I’ve been working my way through the various chronograph movements from the Golden Age of Chronographs. I’ve worked on the Valjoux, Venus, Landeron, and Lemania movements and today I can strike the elusive Excelsior Park movement off the to do list.

If you’ve started a collection of watches dating to the Golden Age (1940 – 1979) then you simply must acquire a Heuer, Breitling, and a Gallet as these three companies were the chronograph specialists of yesteryear. Now obviously I’ve tinkered with a Breitling, but finding a good Heuer or Gallet has been a challenge- especially since I wanted a model with a movement I’ve not yet serviced.

While Breitling used almost exclusively Venus movements for their chronographs, Heuer and Gallet are known to have taken pretty much anything that would get the job done. Gallet does seem to have favored Excelsior Park movements for their chronographs and there is evidence that the relationship between Gallet and Excelsior Park was quite close.

Gallet produced oodles of chronographs from the 1940’s up through the 1970’s using primarily Excelsior Park movements along with some Venus, Landeron, and Valjoux movements sprinkled in. This seems an odd business decision since Excelsior Park had a very limited portfolio of chronograph movements to choose from; however, there seems to have been close ties between the Gallet and Jeanneret (EP) families, and Excelsior Park flourished providing movements to Gallet (as well as Zenith, and Girard-Perregaux).

Everything had changed by the late 1970’s though as both Gallet and Excelsior Park were suffering from the ongoing Quartz Crisis and Gallet had switched almost entirely to the economical Valjoux 7730 family of movements. Zenith had moved on as well purchasing Martel who had provided hand-wound chronograph movements before developing the El Primero automatic chronograph.

Excelsior Park disappeared in the early 1980’s and had their inventory absorbed by Gallet who survived and continues to this day- although their offerings are limited and marketed at the high end.

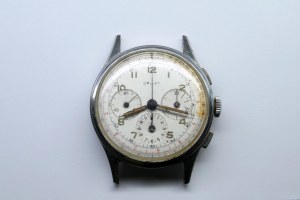

IMG_0155The piece you see here today is not a watch marketed to the high end, but rather an everyman timepiece produced by Gallet in the early 1960’s. This is the Gallet Multichron 12… Or more accurately this was a Gallet Multichron 12 which has been ruined by rust.

I picked this piece up while on the hunt for a bargain as the discretionary fund was nearly empty.  Things haven’t improved much since then but a supreme bit of luck allowed me to fix this watch and have a running Gallet at a reasonable cost.

Now there are three rules of watch collecting that one should always adhere to if he or she wants to have a collection to be proud of instead of a cigar box of junk. First and foremost, avoid watches with bad dials. There is no solution for a watch with a damaged dial other than replacing the dial. Repainting the dial can be done- but the watch will only be as valuable as the accumulated parts. Naturally I broke this rule and grabbed a watch with a damaged dial. In my mind I thought, “That stain will clean right off”.

IMG_0167
The hands are oxidized and the dial has some staining around the edge

Rule number two is to always factor in the cost of service. Parts can be expensive or difficult to find and replace. A good watchmaker may have a backlog of several months and the price of labor alone for a chronograph starts around $400. Water damage almost always means replacing the entire movement which is easily half the value of the whole watch. This piece was water damaged.

IMG_0158
A first look at the extent of the water damage

Lastly, buy the seller. This simply means you need to be able to trust the seller.  I don’t know this seller. Apparently he runs an antique shop in Colorado.

So in short, I bought junk- but think of the savings!

Now, as grubby as this piece was, I couldn’t wait to get my hands on it. I eagerly awaited it’s arrival from in the post. Once in hand, I quickly popped the Caseback off and took in the Excelsior Park movement in all of it’s glory, oh my…

So taking stock- it was clear the watch had been submerged in water at some point in the past and the water had entered the movement through the Pendant Tube and the cutouts for the Chronograph Pushers. Water had caused oxidation of the Chronograph Pushers, Stem, Flyback Lever, Operating Lever, Conveyer Spring, Flyback Lever Spring, and probably a lot more.

Most of this I had known already as the seller has posted images of the topside of the movement. I had already queried my usual suppliers and discovered the damaged parts were not available. Clearly insanity had taken hold of me. Worst of all, there was probably more water damage that I had not yet set eyes on.

IMG_0161

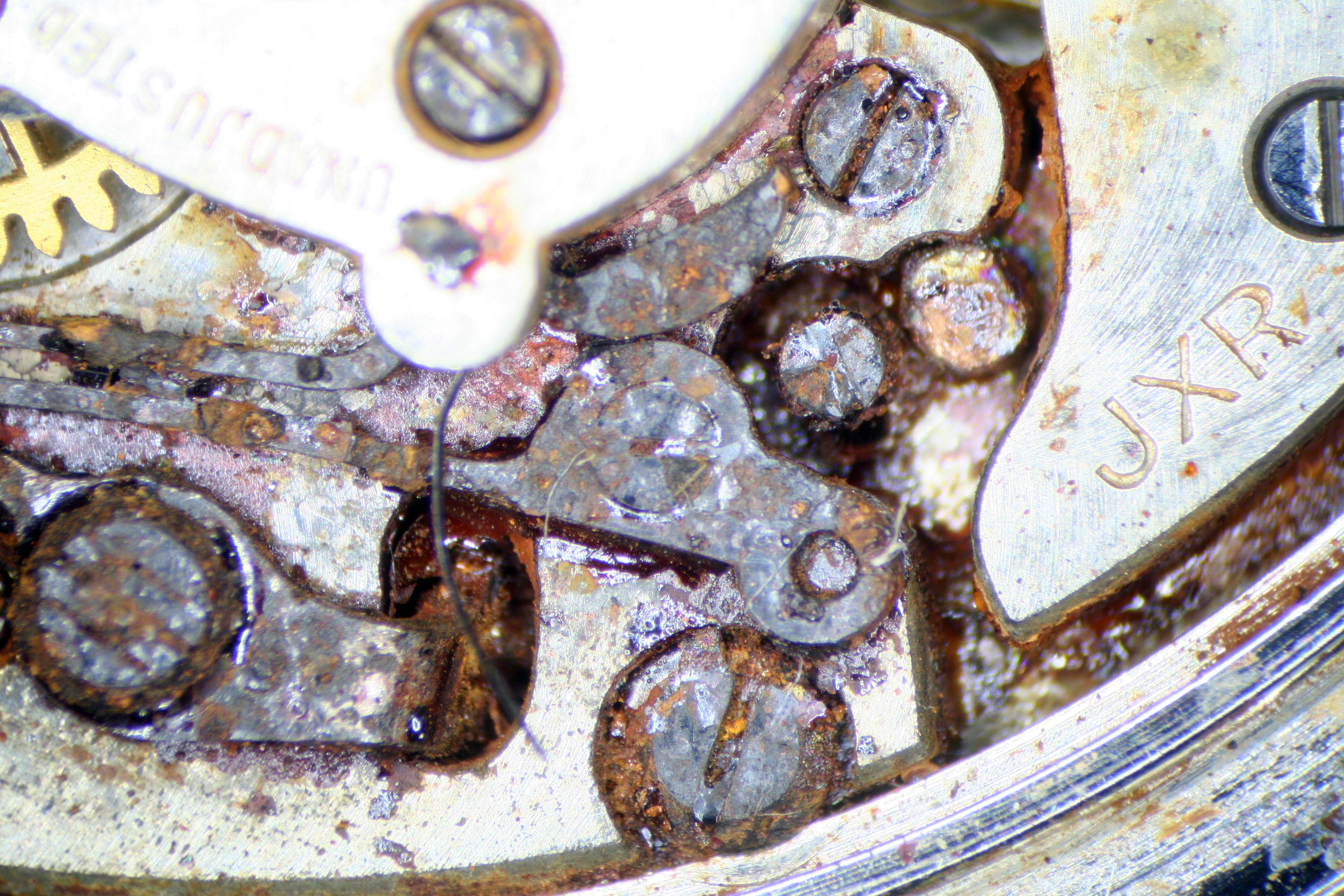

The rust riddled Flyback Lever, Conveyer Spring, and Minute Recording Jumper
IMG_0163
The Operating Lever with oxidation
IMG_0165

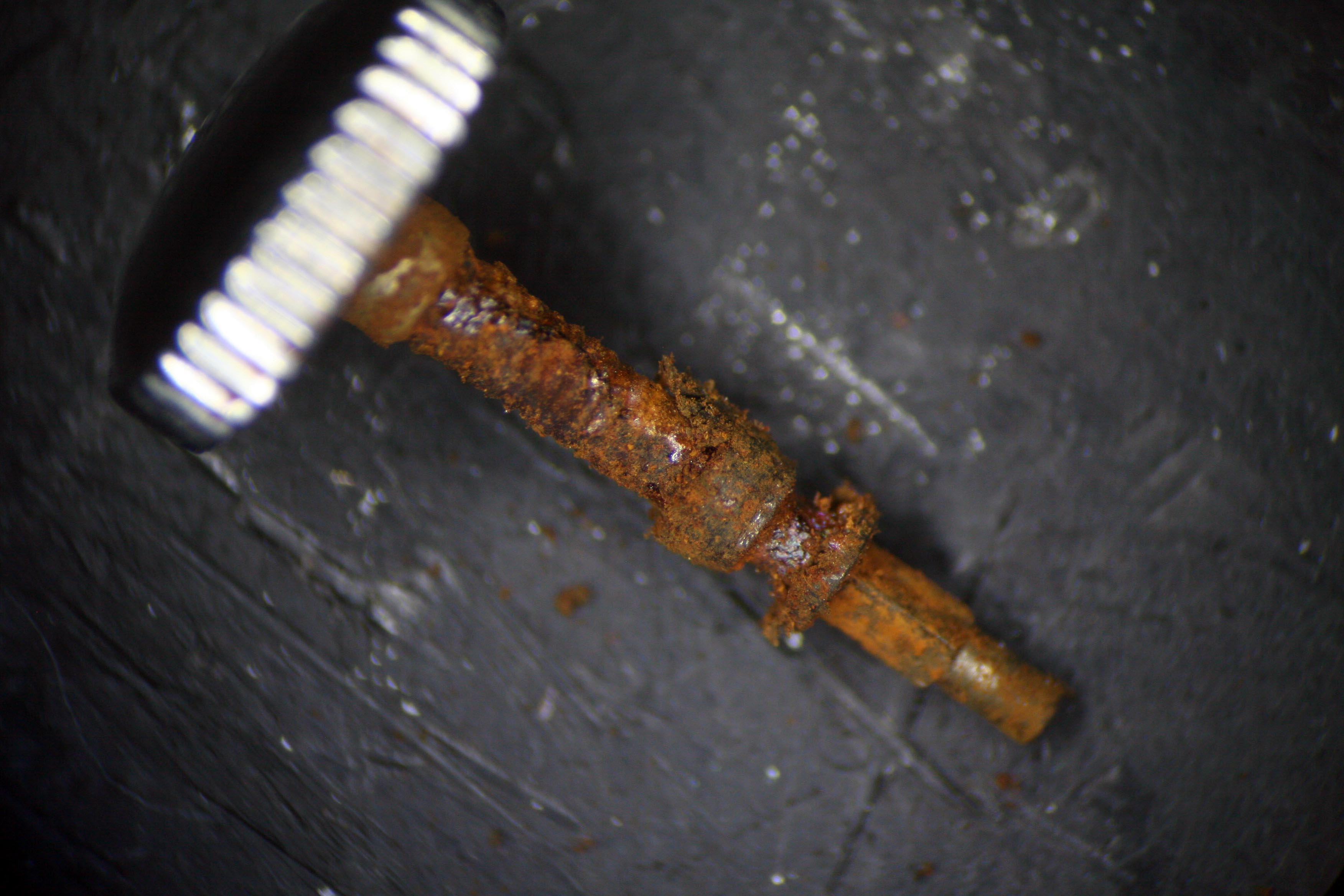

The Crown is fine, but the Stem is kaput

At this point I still did not know how much water damage was hidden beneath the dial and the thought of what I might find gave me pause. For most mechanical watches the Keyless Works has the greatest concentration of steel in the movement. This part of the watch mechanism is adjacent to the Pendant Tube and therefore often is destroyed when water is introduced through the tube.

In addition to the Keyless Works, I had much reason to be concerned as the hour recording mechanism for the chronograph is located beneath the dial. If water had damaged this I would have to seriously consider parting out the movement.

I inhaled deeply as I pulled the hands from the dial one-by-one. Flecks of rust were visible everywhere.

IMG_0169

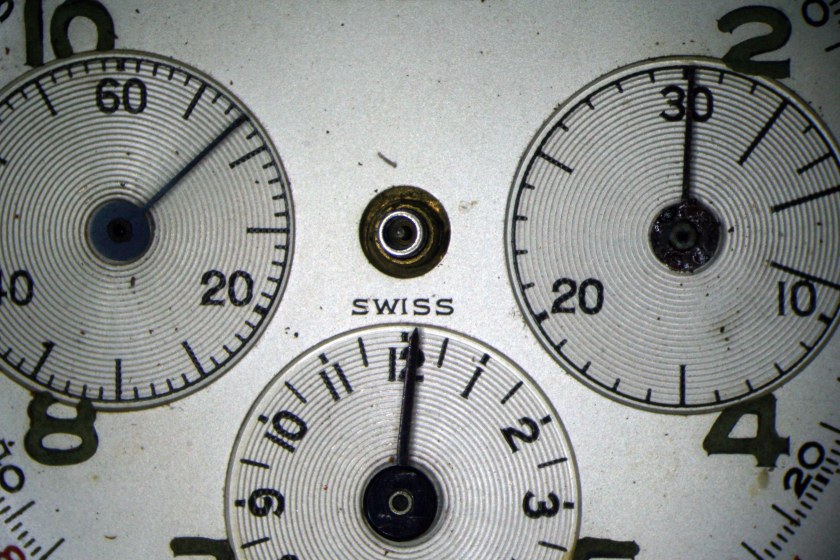

Lots of rust debris

Once the hands were removed, I pulled the dial away to reveal the full extent of the water damage.

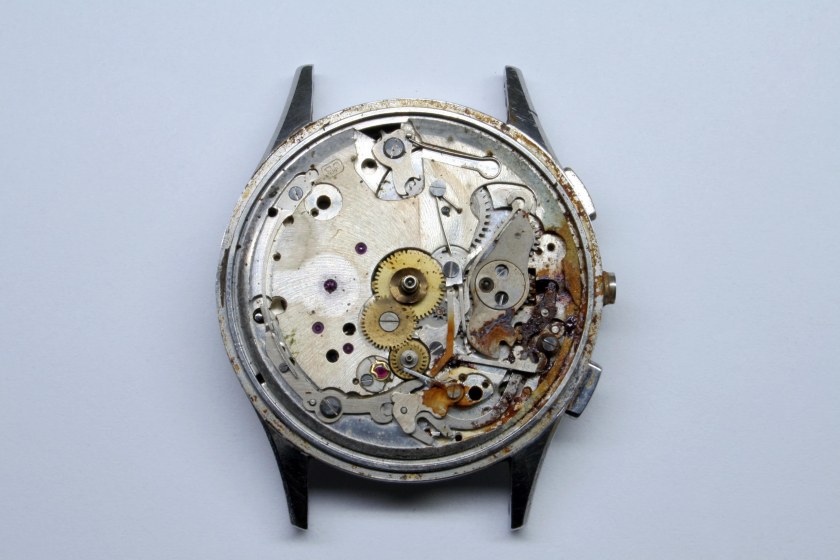

IMG_0173
Much rust damage in the Keyless Works
IMG_0175

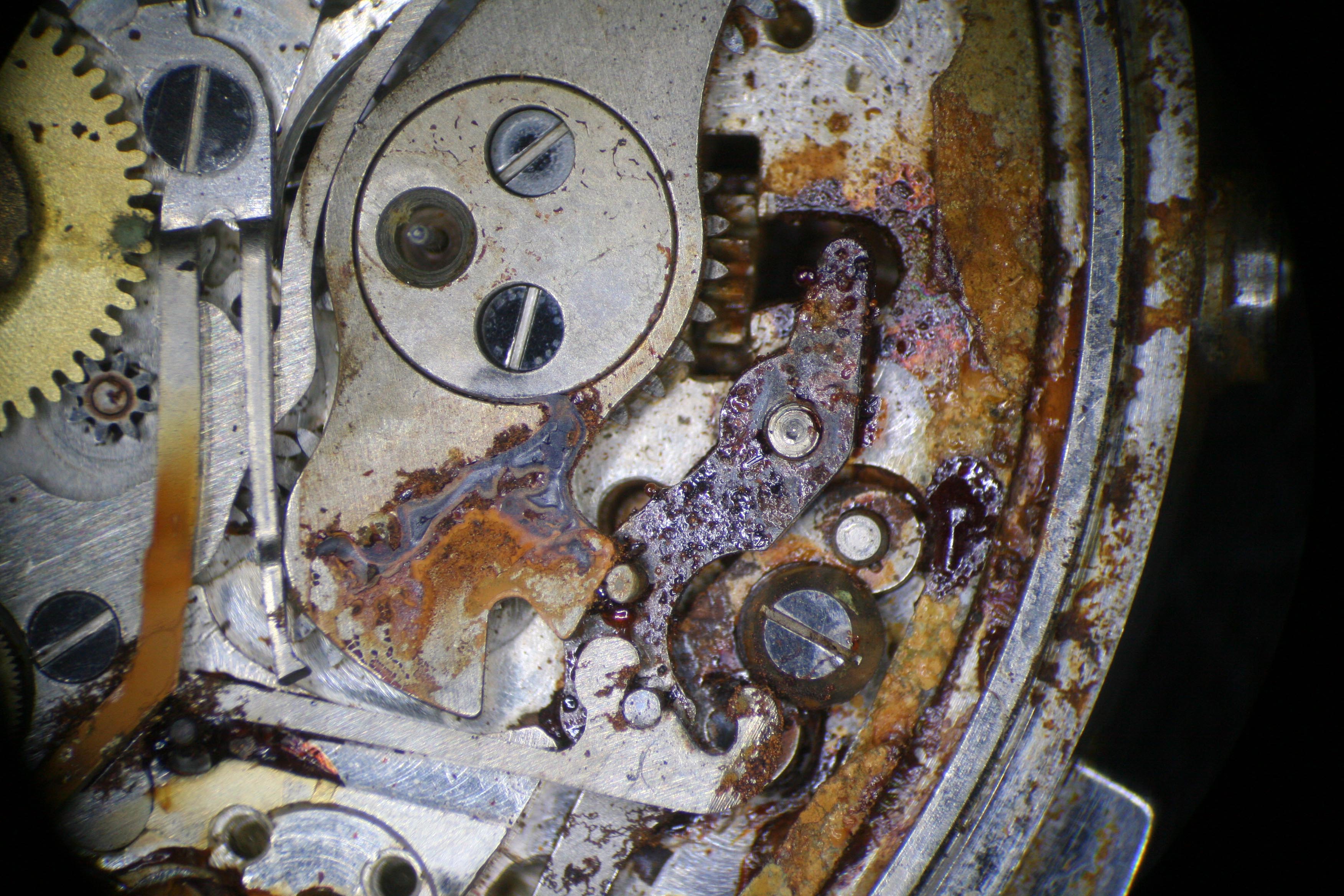

However, A close-up of the damage reveals much to be superficial
IMG_0177

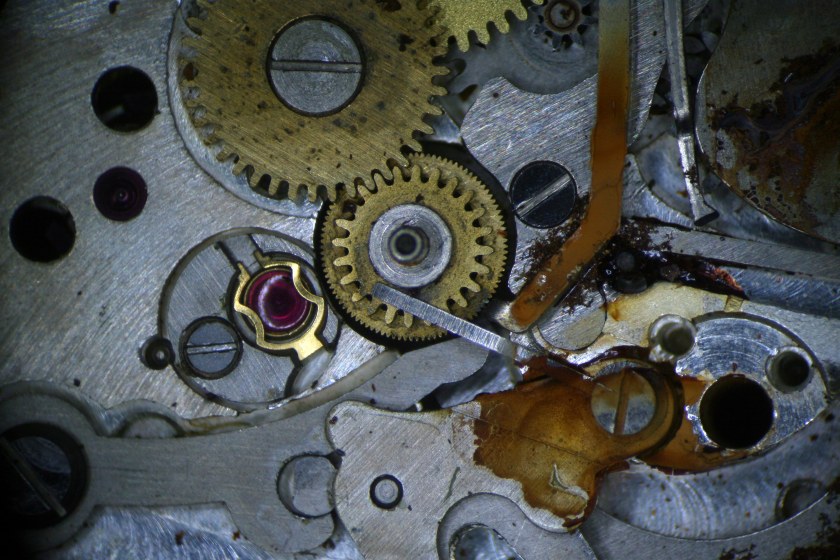

The hour recording mechanism is stained but otherwise intact

I won’t sugar coat it; it looked bad- really bad, but looking closer I found most of the water damage to be superficial.

The Setting Lever seemed to get the worst of it but otherwise I discerned were no parts under the dial which required immediate replacement. Quite a bit of vinegar and elbow grease would be needed to do this movement proud though.

Things looked even worse once the movement was out of the case.

IMG_0178

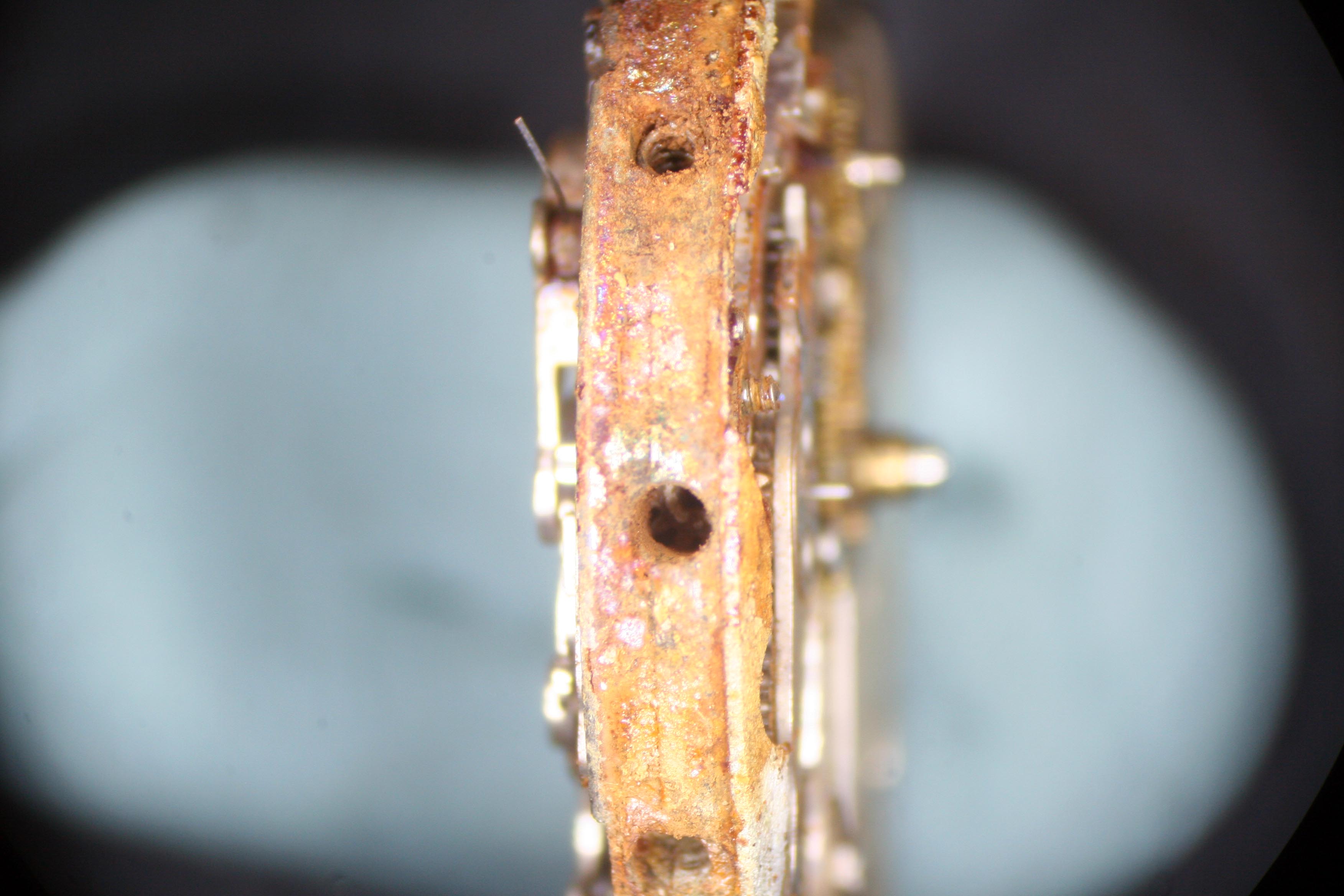

This is when I really started to worry

Both Chronograph Pushers were obviously beyond repair along with the Stem… but the Going Train appeared to be intact which is amazing considering how small most of the pivots are; I figured the humidity inside the watch case was enough to destroy them for sure.

Even if the Going Train moved freely, I wasn’t about to test this movement before breaking it down. Rusty debris had worked its way through the entire mechanism and fouled any remaining oil- winding it up in such a state would be folly.

IMG_0180
Out of the case- my work is cut out for me
IMG_0184
Close-up of the Pillar Wheel and Blocking Lever (Brake)
IMG_0162

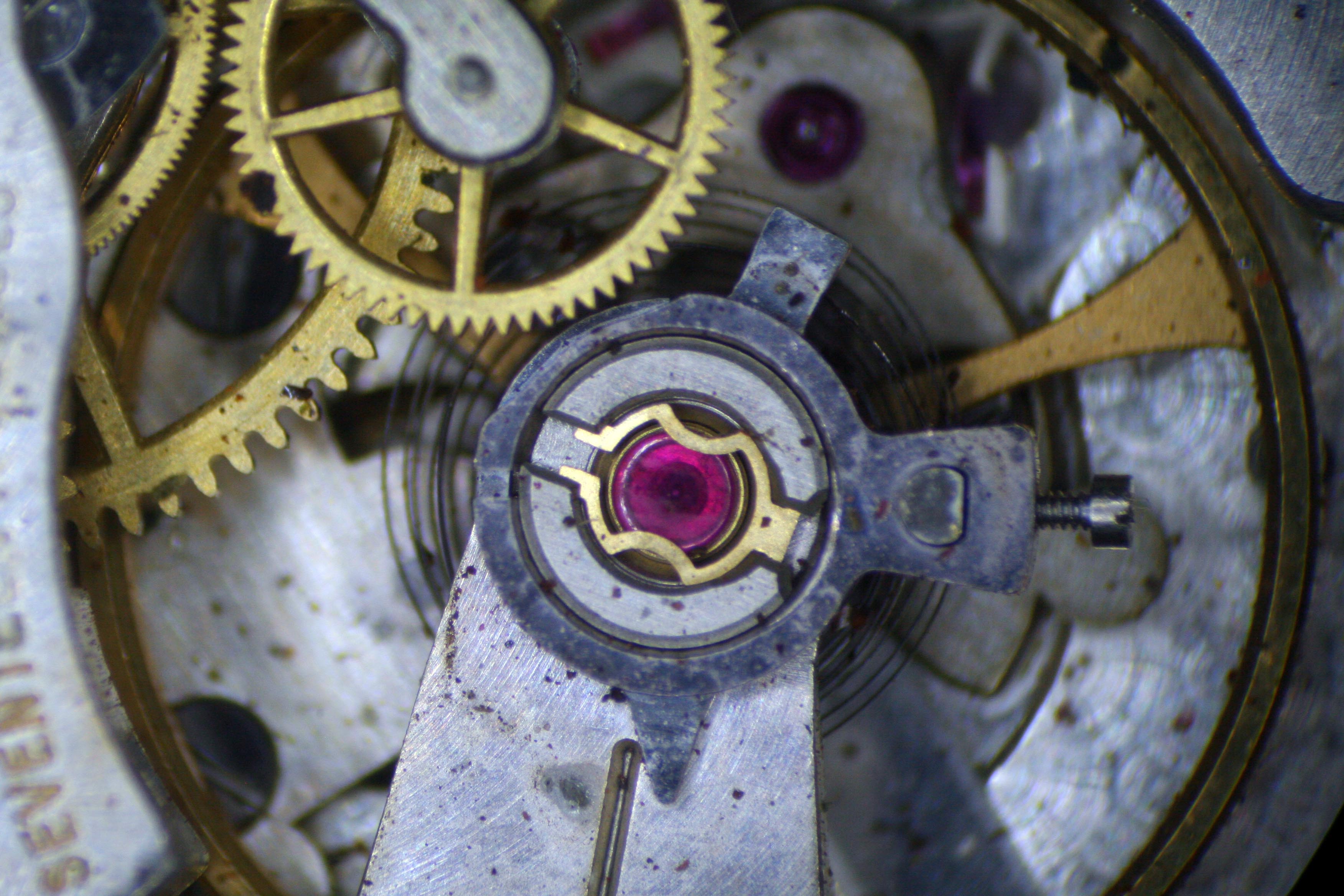

The Balance Assembly moved freely but rust had fouled everything

For a little background- this particular movement is the Excelsior Park calibre EP40-68.  Excelsior Park initially produced the calibre EP4– a two button chronograph movement with thirty minute counter. Later they produced the EP40 which was identical to the EP4 but added a twelve hour counter. The calibre EP40-68 came last, probably in the early 1960’s; it was identical to the EP40 except that a Beat Corrector had been added to the Balance Cock and the Balance Wheel was re-engineered to be of lower mass. Excelsior Park continued using Breguet Hairspring in the Balance Assembly as they had before in the EP4 and EP40 movements.

The Breguet Hairspring is not the flourish in this movement to make the Swiss proud though. Although it may be difficult see (thanks in part to the rust staining) an exceptional Geneva Stripe finish adorns the Top Plate of the movement. The finish is applied with such precision that each of the stripes adorning the plate line up perfectly with the stripes on the Balance, Escape Wheel, and Fourth Wheel Cocks. It’s a nice touch that you won’t find in “every man” watches of today.

IMG_0183

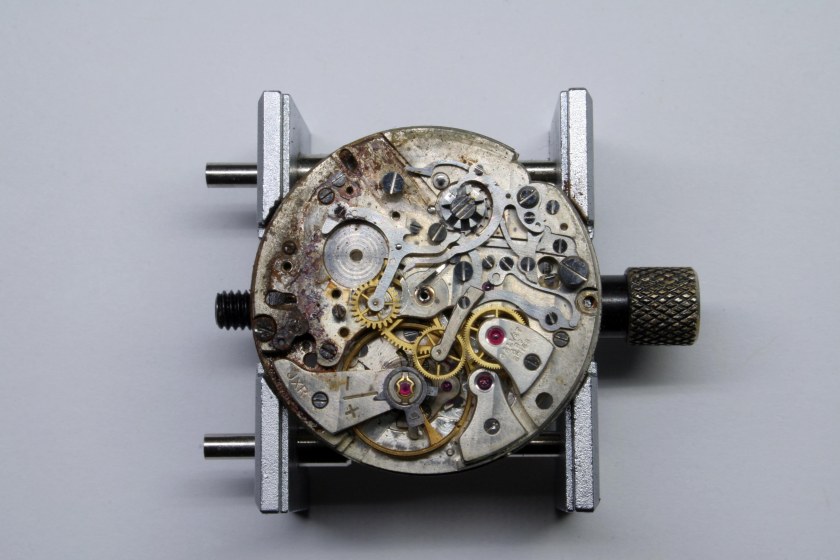

The Geneva Stripes start to show through
IMG_0190

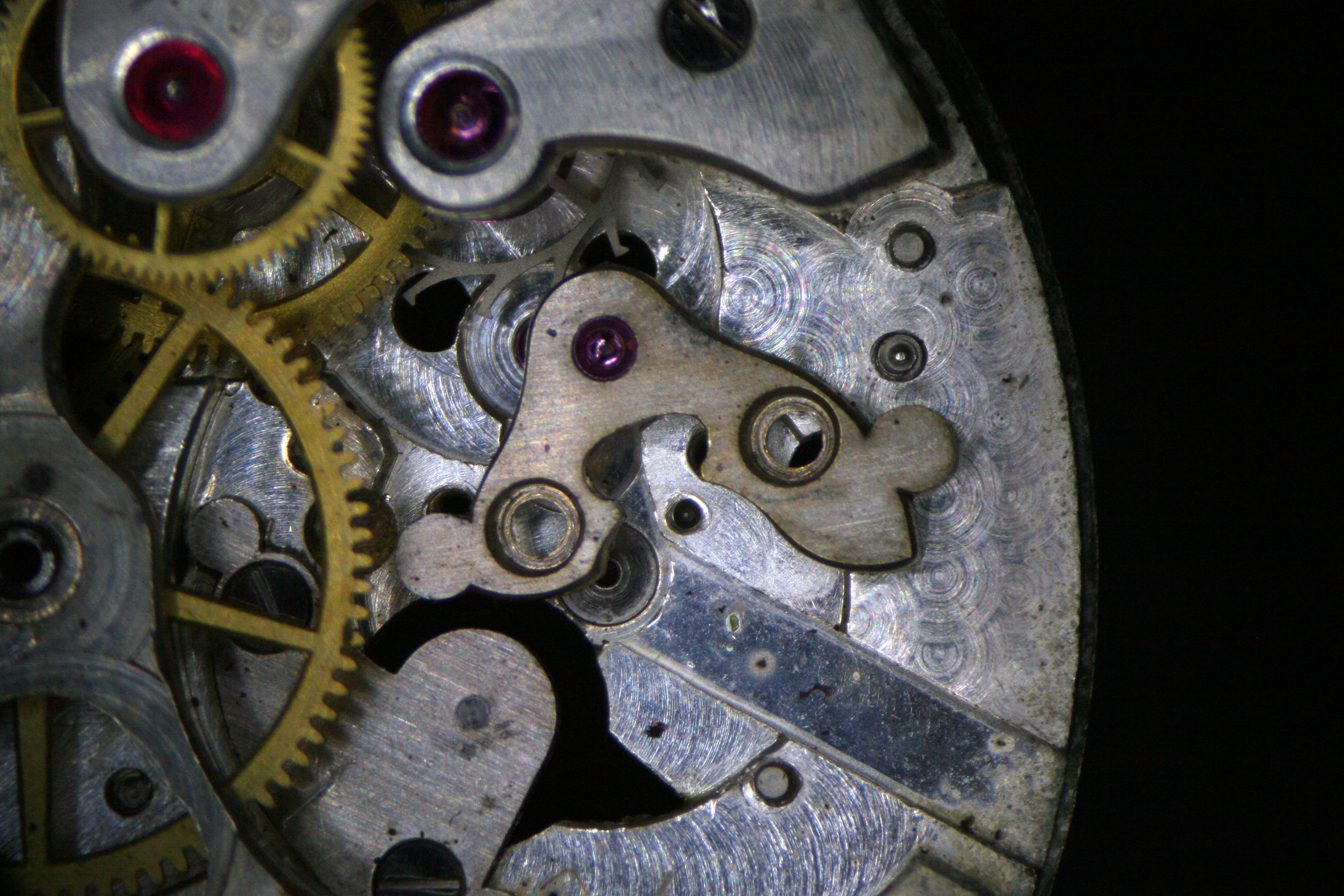

A bit of Perlage can be found beneath the Balance Assembly

Getting back to my teardown- after removing the chronograph mechanism, I was disappointed to find the Center Wheel had not escaped water damage. Apparently a bit of H2O came in contact with the pivot passing through the Top Plate. The steel was pitted and flaky and I  had to consider the Center Wheel might require replacement.

IMG_0185

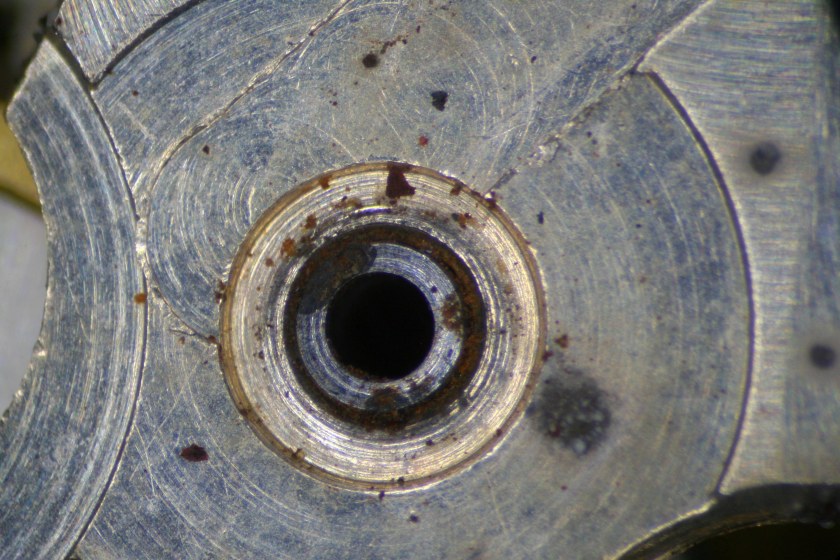

Damage to the Center Wheel pivot

Moving along I found at times disassembly was a struggle. Despite my best efforts, some of the rusted screws simply would not exit the plate. I needed pull every trick out of my bag to get these bits off in the end- cutting new slots for the screwdrivers, filling away damaged material, and utilizing alum to breakdown steel that couldn’t otherwise be extracted.

IMG_0186
I struggled with those rusty screws for quite some time
IMG_0187
On the bottom side, the screws were in better shape but there was a lot of rust flying about

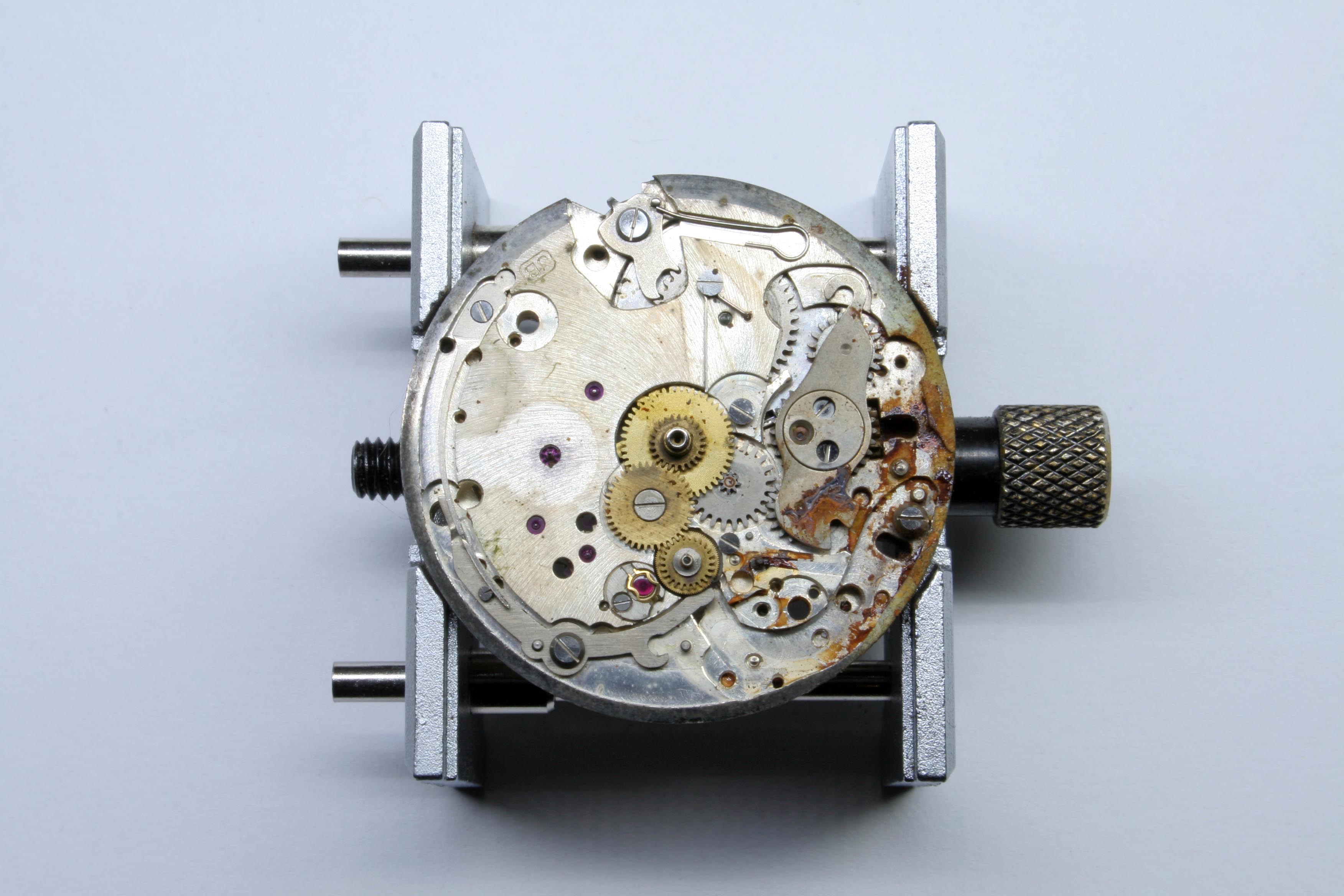

Turning to the Bottom Plate I began picking apart the Keyless Works. Initially I had assumed the entire assembly would be toast but it was not so. Just about every part turned out to be free of substantial damage. My assessment of “lots of elbow grease” was downgraded to “maybe some Q-Tips and isopropyl alcohol”.

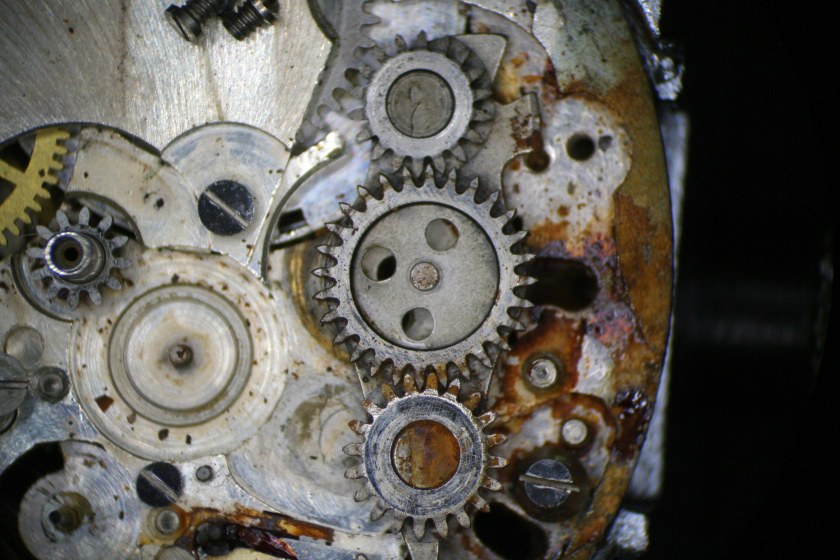

IMG_0188
Amazingly the Keyless Works wasn’t a rusted mess
IMG_0191

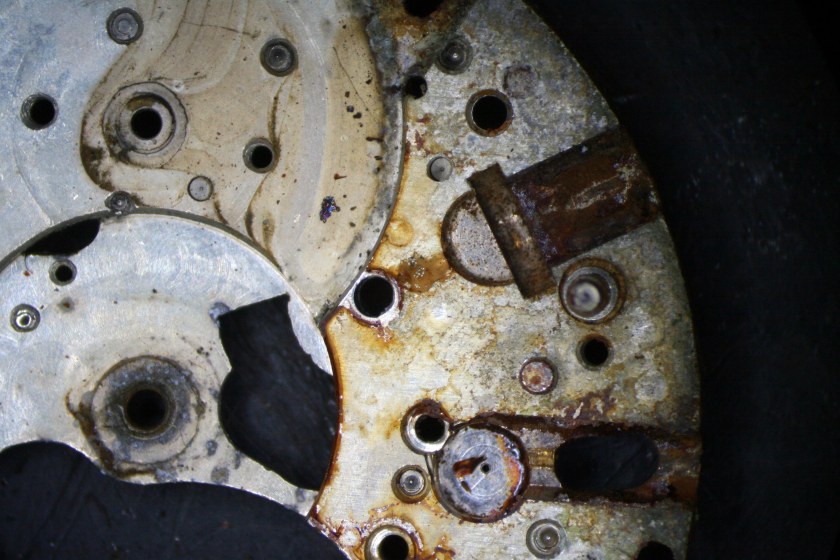

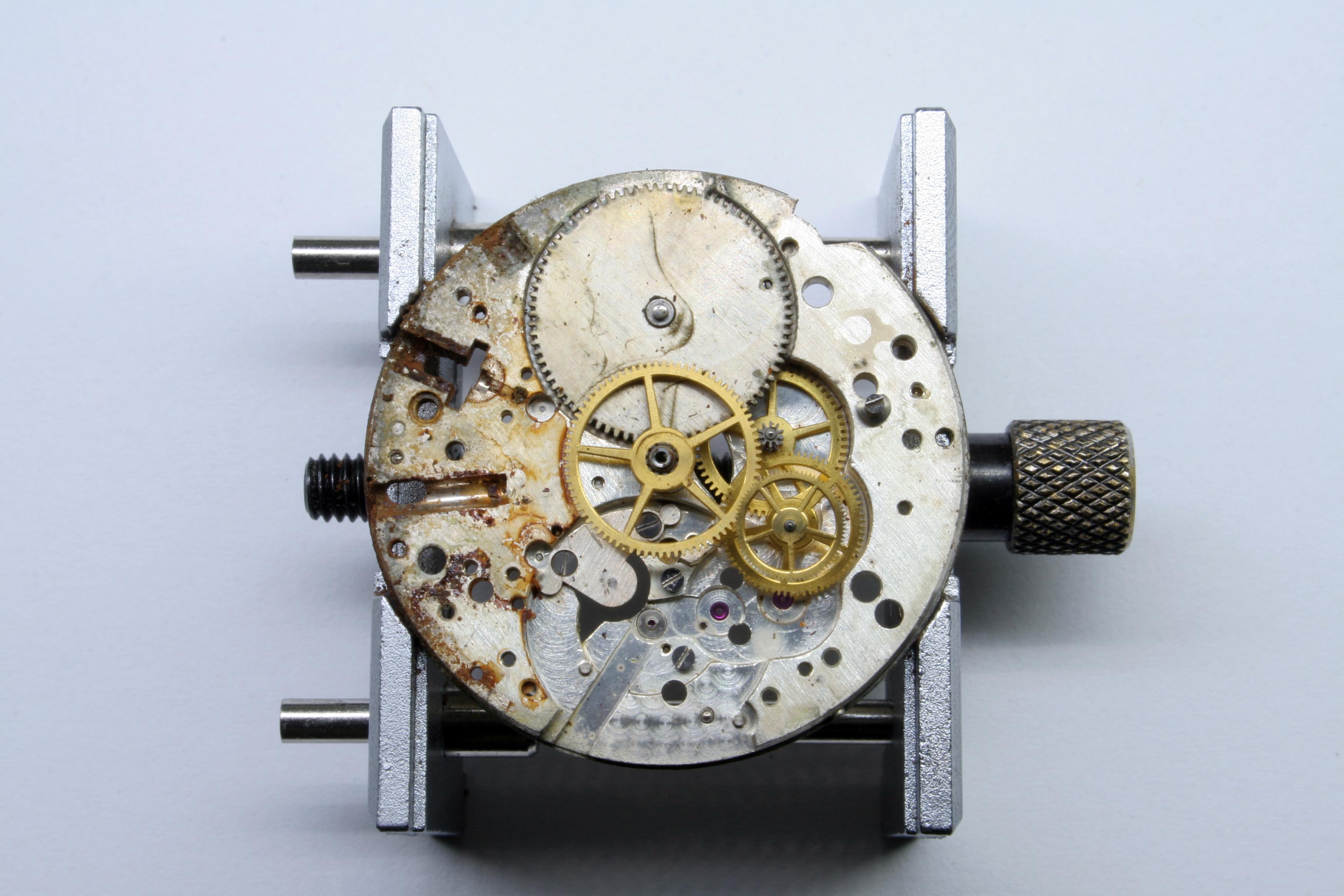

The underside of the Top Plate is stained terribly
IMG_0192
With the Top Plate removed the Going Train is fully visible and in good shape

An assessment of all the parts damaged beyond repair was taken once the movement was fully apart. The Operating Lever, Flyback Lever, Conveyer Spring, Minute Recording Jumper, Pusher Spring, Chronograph Pushers, Stem, and various screws didn’t make it.

I had already queried my suppliers and discovered they did not have any Excelsior Park parts in their inventories. This makes sense Excelsior Park has been out of business for thirty years and the EP40 movement hasn’t been produced for even longer.

I turned to eBay (as one does) to see if I could find the parts I needed there. Sadly what I found was none of the parts I needed and any sellers who had Excelsior Park parts generally charged through the nose for them. Things looked pretty grim.

Then, as if by divine intervention, a seller showed up who was moving full lots of New-Old-Stock Excelsior Park parts, and best of all, he was selling the lots at a price I could afford. I jumped at the chance to grab one and found that the lot contained every single part that needed replacement, plus over a dozen more! I was astounded by my luck.

I returned to the job with quite a bit of confidence. I knew I could get the chronograph working again so the survival of this watch would come down to state of the Escapement– if I could get the movement clean, and the Escapement functioned properly, I would have a real winner.

IMG_0198

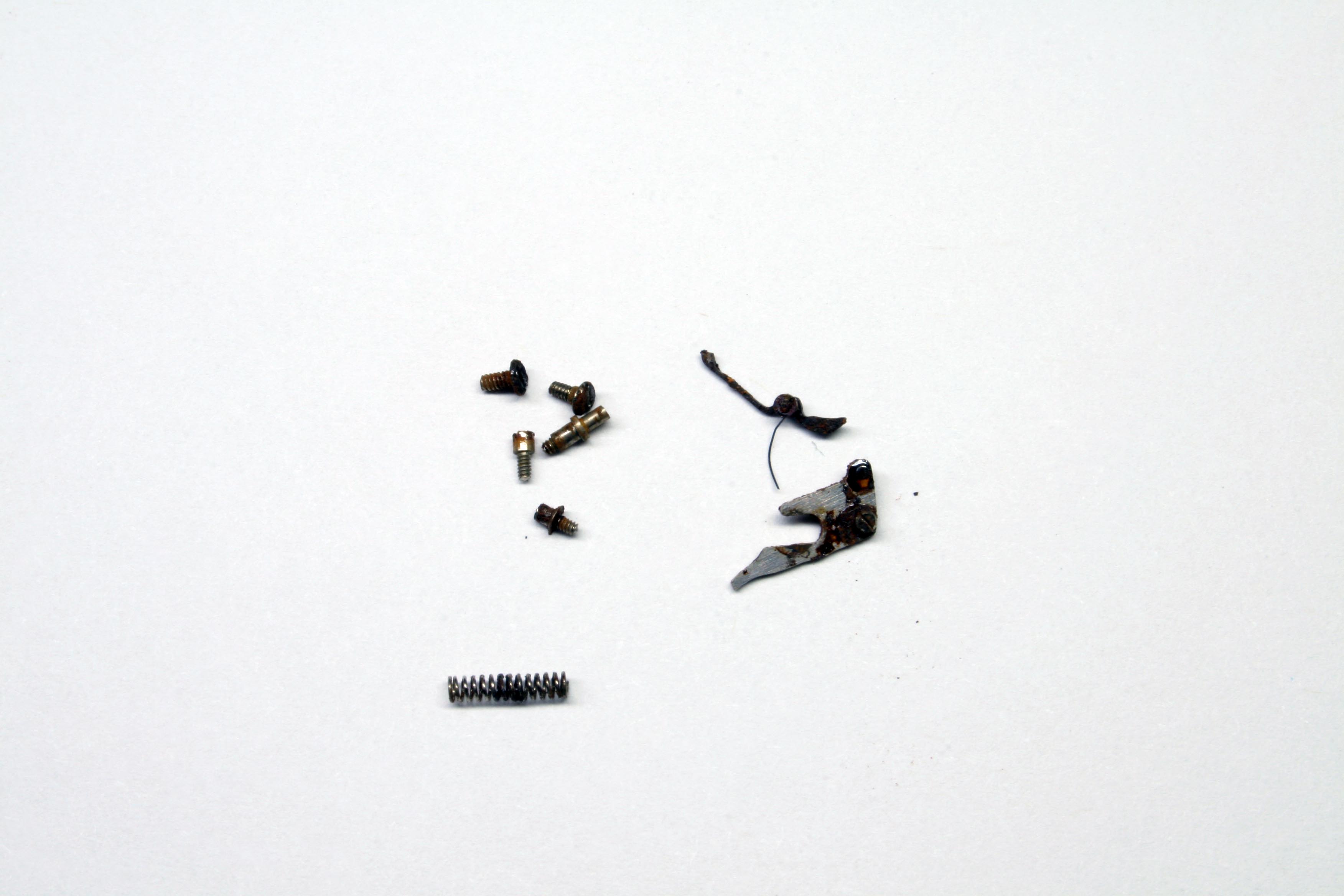

Some of the non-recoverable parts
IMG_0200
The Crown, Stem, and Chronograph Pushers

Several hours (days) spent cleaning parts elapsed before I was ready begin putting things back together again. Quite unexpectedly I didn’t need a new Mainspring as the original was in great condition!

IMG_0196

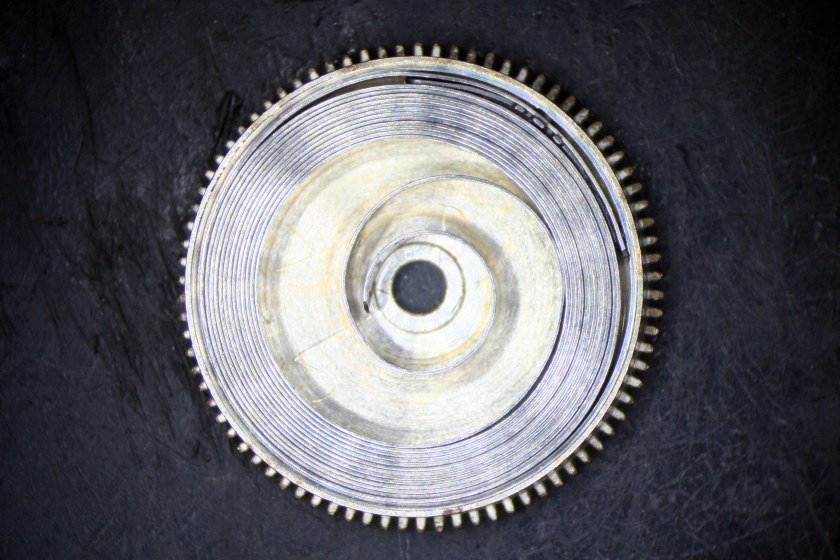

Can you believe I got to reuse the original Mainspring?

The plates were never completely free of staining even after two runs through the L&R, one through the ultrasonic, and a lot of hands on work, but I’m happy with where they are now.

IMG_0206

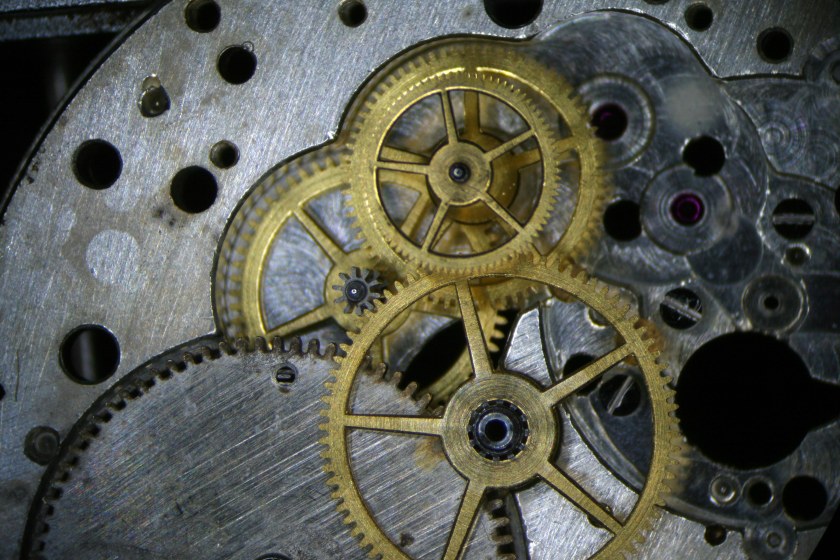

I love Excelsior Park’s stacked wheel design here
IMG_0207
Also,  note how the Pallet Bridge is cut to fit the Bottom Plate like a jigsaw puzzle

As I was putting things back together I took a bit of time to reflect on some of Excelsior Park’s engineering quirks. For example- the Driving Wheel which pushes the Chronograph Runner (which in turn moves the Sweep Second Hand) is typically friction fitted to the extended pivot of the Fourth Wheel. Such a design was not good enough for Excelsior Park. Nope, they designed a Driving Wheel that is permanently fitted to the Fourth Wheel in a stacked arrangement. Thus it will never become loose and/or lost.

I noticed also that many of the bridges and cocks in the movement were milled in a way that they fit to the plates like pieces in a jigsaw puzzle. I’ve not seen such design considerations in any other movements thus far.

Even the cap jewels for the Balance Assembly were carefully engineered. Note the circular trough cut into the cap jewel in the image below. The jewel is lab grown sapphire- how one could cut such a perfect circle down to the hundredth of a millimeter in such a hard substance is beyond me.

IMG_0208

I remediated the damage to the Center Wheel with a bit of pegwood and polish and reassembled the base movement being extra careful to spot any rust or debris that might have escaped the cleaning effort.

IMG_0211
Base movement back together
IMG_0212

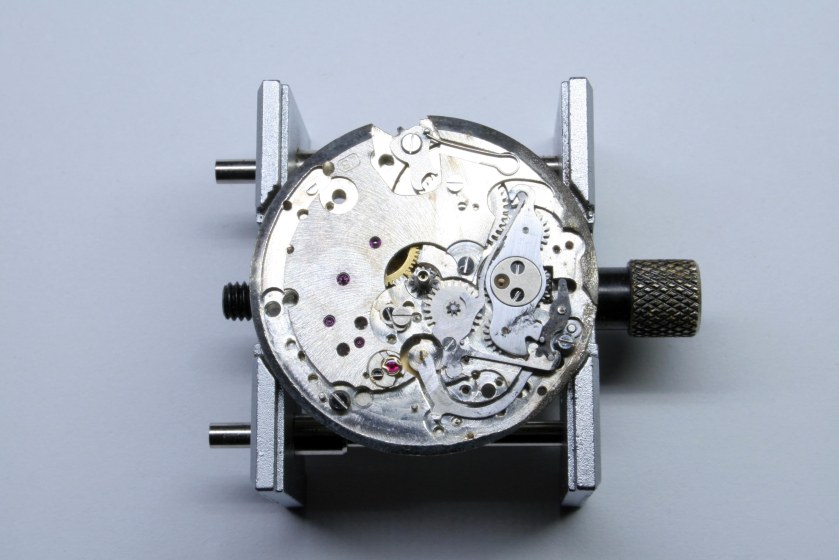

Bottom side there is a bit of scarring but everything is functional

Once back together I was ready to see if this movement could still keep time.

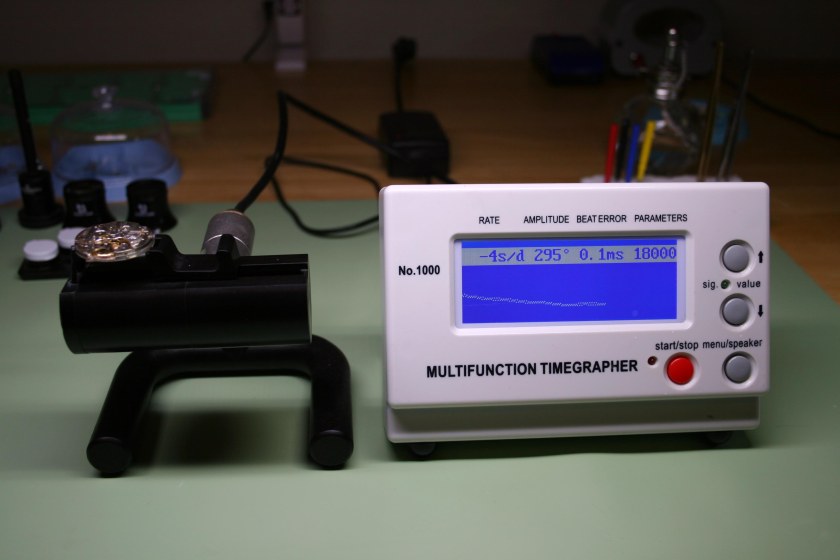

IMG_0215

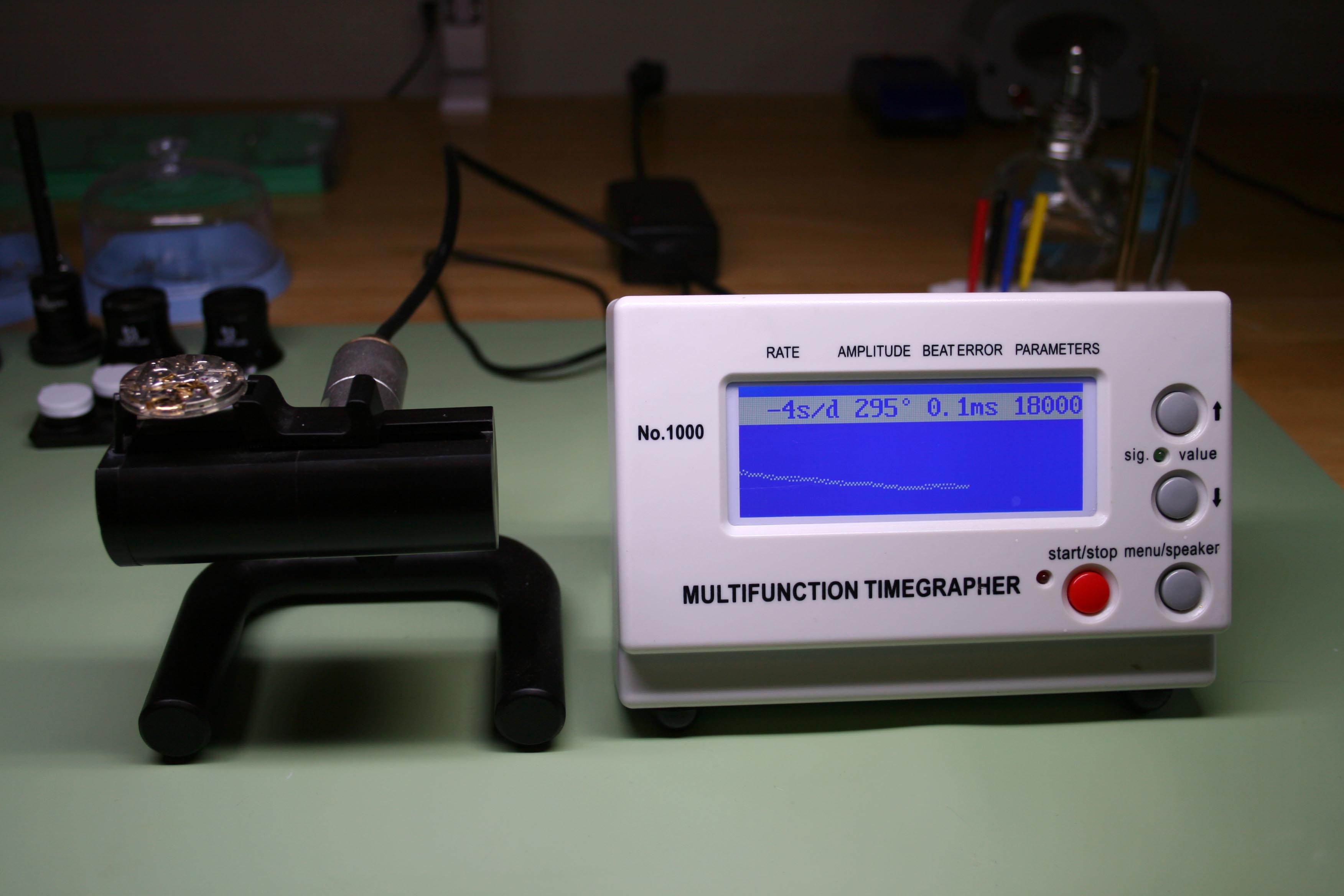

The high amplitude is an indication the Center Wheel is okay

Right off the bat the Timegrapher registered an exceptional amplitude reading and I was able to regulate the Escapement. This was as good an indication as any that I could save this watch.

I moved onto assembling the chronograph mechanism which had to be done from memory as there is no technical sheet available or Esembl-o-graf course to lean on for an Excelsior Park movement.

IMG_0219

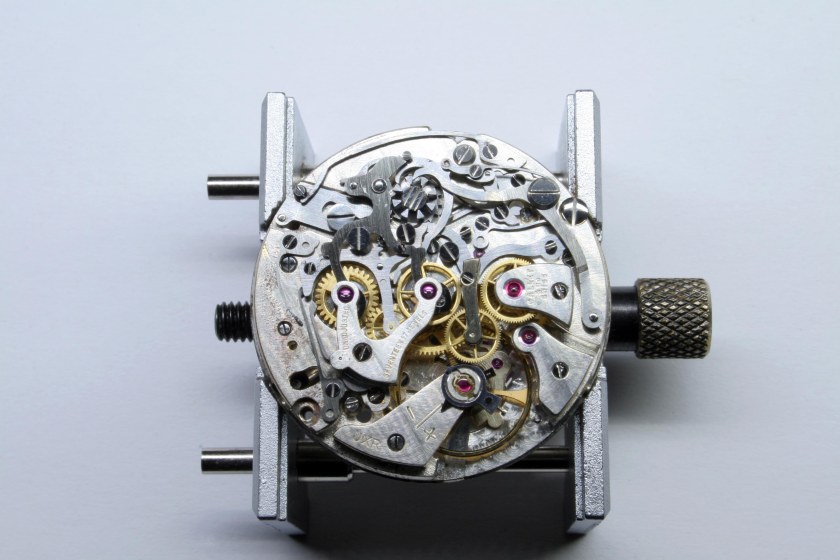

Chronograph almost back together

If you have followed my Lemania, Landeron, Venus, or Valjoux repair posts then you probably have noticed this chronograph movement looks nothing like them. That’s one of the things I find invigorating about working on chronographs- each manufacturer has a slightly different method of solving the same problems. Here your eyes may deceive you though as the same parts are found on this movement as the Lemania, Landeron, Venus, and Valjoux movements- it’s really just the layout that has changed as the Excelsior Park movement is essentially a mirror image of the other movements. The Mainspring Barrel and Balance Assembly have flipped positions causing the location (and design) of pretty much everything else to change as well. It’s why I consider this the Southpaw of chronograph movements.

If there is one clear difference to be spotted it is how the hour recording mechanism operates. In the chronographs I’ve serviced earlier the Hour Recording Runner is driven directly from the Mainspring Barrel. In this movement the Hour Recording Runner is pushed by the Hour Wheel in the Dial Train. It’s an elegant solution.

IMG_0221

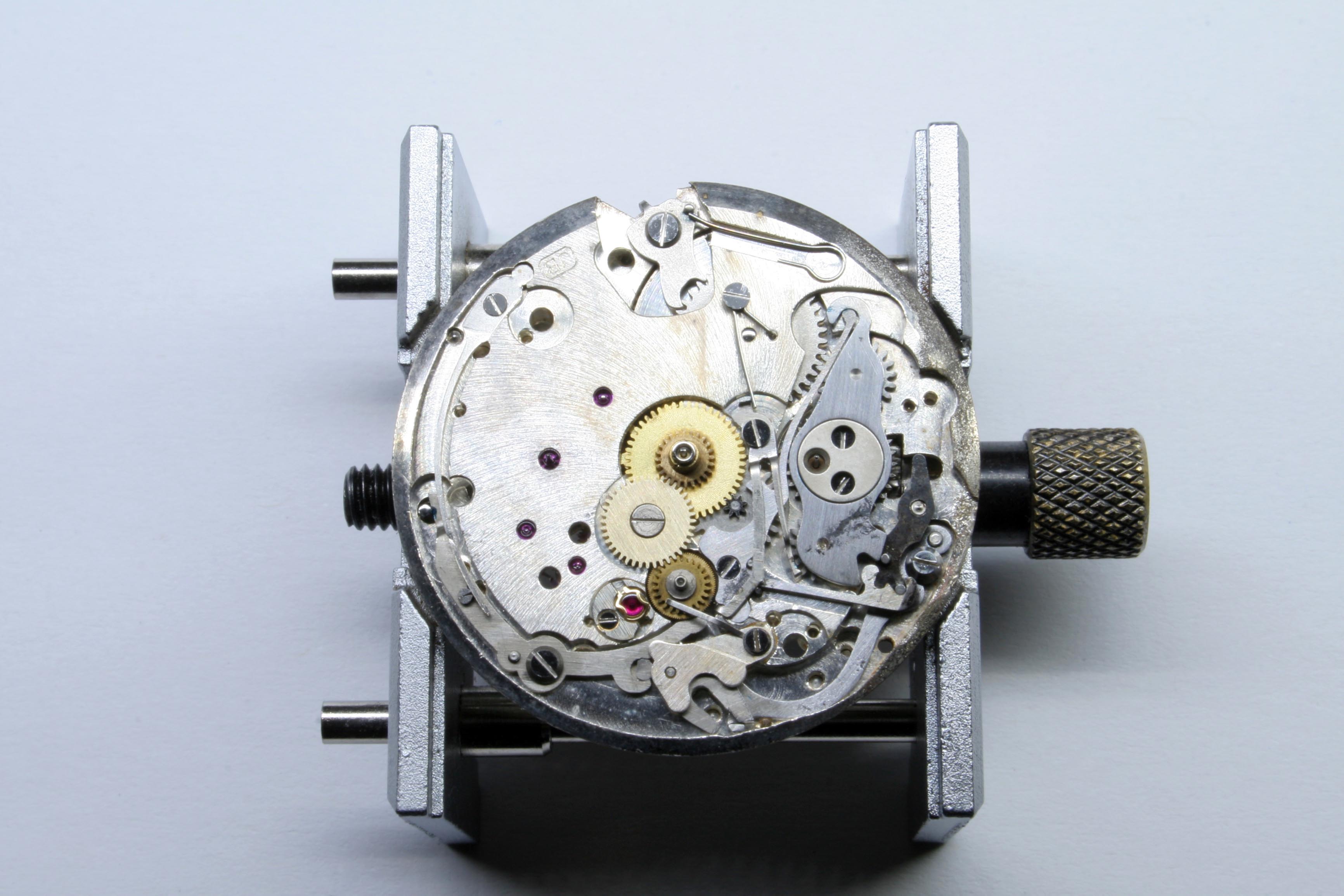

Dial side reassembled

With the movement together and ticking it was time to re-case it and affix the dial.

I set the movement the case and prepared to install the new Chronograph Pushers. These I found on eBay early during the repair and ordered straight away. They came in from Australia and initially were not a proper fit as the steel shafts were too long. I turned the shafts down on the lathe and re-threaded the ends. The Chronograph Pushers were then installed and I tested the function of each button.

IMG_5741
The new shafts were a bit long
IMG_5742
Movement in the case with the Chronograph Pushers reinstalled
IMG_0231

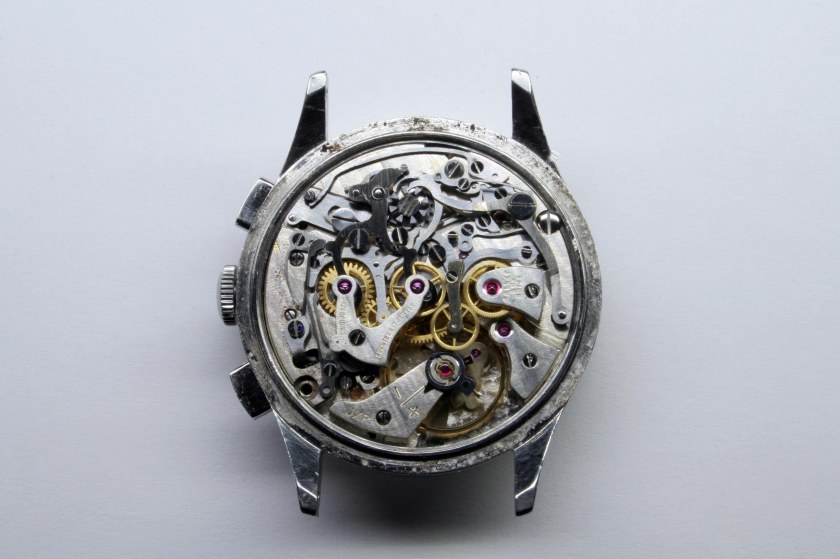

This would look great with a windowed Caseback

Before installing the dial I attempted to clear the rust stains with a bit of distilled water and a Q-Tip but was dismayed to find the blue Tachymetre, which circles the perimeter, came away with almost no effort at all. I had to stop before things got any worse and accept defeat. The dial still looks darn good for its age so I’m not complaining.

IMG_0222

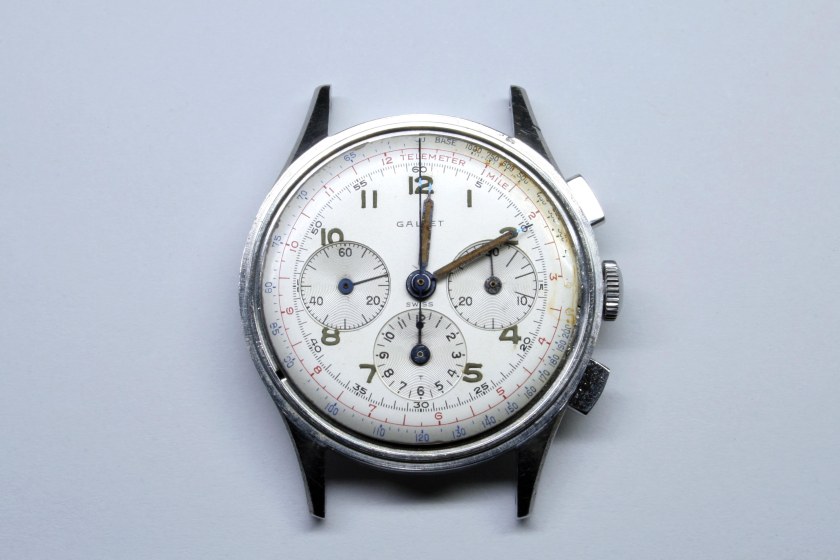

Some of the Tachymetre scale at the 3 o’clock position has been lost

I reset the hands and installed a new high dome acrylic crystal to complete the job.

IMG_0228
But it’s hard to complain considering  where we’ve ended up

Thus at the end of many days and nights of hard work, I now have a functional Gallet Multichron 12 for the collection.

Though I gambled, I thought I might save a bit of money by starting with a distressed piece but right before finishing my work I found an identical Gallet, in proper working condition, sold on eBay for essentially the same amount I paid for mine (plus parts). That was a little disheartening. I must point out that my watch is now fully serviced and has New-Old-Stock Chronograph Pushers and that’s nothing to sneeze at. Also, I’m proud of my latest accomplishment and thrilled to add and EP40-68 movement to my list of serviced chronographs. Most importantly, it’s a great looking watch which I plan to hold onto for many years.

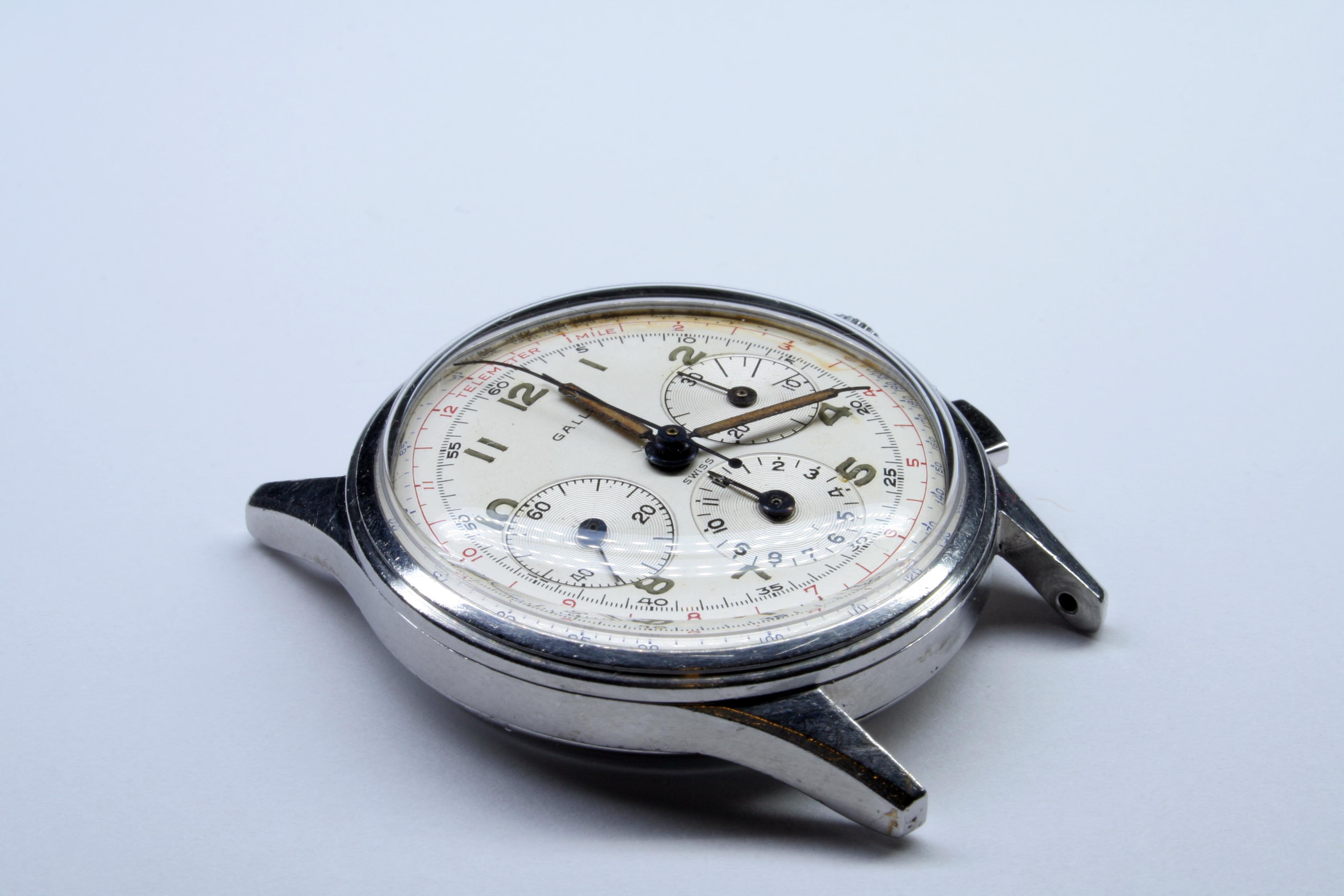

IMG_0229
Service complete, just awaiting a strap

So what’s next- perhaps a Movado 95M?
